JDM Vehicle Catalog

Vehicle Specs

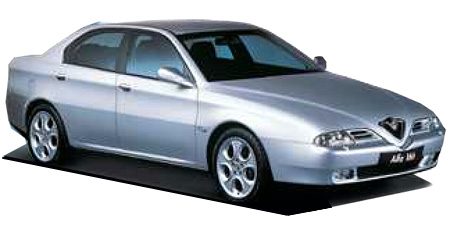

ALFA ROMEO ALFA 166 3.0 V6 24V SPORTRONIC

ALFA ROMEO ALFA 166

936A11 · 3.0 V6 24V SPORTRONIC

Description

Modification: 3.0 V6 24V SPORTRONIC
Chassis ID: 936A11
Dates releasing: 2001.9~
Base price, ¥: GF-936A11
Body size: 4730x1815x1415
Interior (LxWxH): ----x----x----
Wheelbase: 2700
Track f/r: 1545mm/1530mm
Full weight, kg: 1600
Body type: Sedan
Doors / seats: 4 door / 5

Safe equipment

Driver's air bag: ✓
Front passenger air bag: ✓
Side airbags: ✓
ABS: ✓
TRC: ×
Belts w/ tensioner: ✓
Belts w/ effort limiter: ×
Belts w/ holding: ✓
Child-seat fixation: ×
Safety planks: ✓
Brake assist: ×
Energy-absorbing body: ×
EBD: ✓
Anti-theft device: ✓
Additional equipment: FPS(火災予防装置) VDC(ビークルダイナミックコントロール)

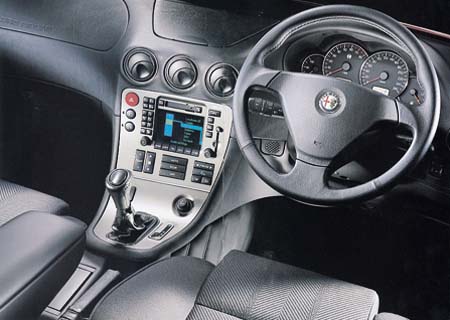

Comfort

Air conditioner: Full Auto
Power window: ✓
Central switch: ✓
Steering column length: ✓
Steering column height: ✓
Cruise control: ✓
Leather steering wheel: ✓

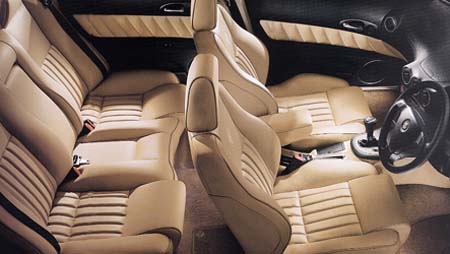

Leather seats: —
Power front seat: ×
Power rear seat: ×
Wood panel: ×
Sunroof: シングル
Alloy wheels: 17 inches standard
Folding seat: ×
Glass w/ UV filter: ×
Toned glasses: ×

Engine

Model: ----
Type: V-type 6 cylinder DOHC 24-valves
Bore x stroke, mm: 93.0x72.6
Engine size, cc: 2958
Compression ratio: 10.0
Fuel injection: 電子制御燃料噴射
Max power, hp/rpm: 220ps(162kW)/6300rpm
Max torque, Nm/rpm: 26.9kg m(265N m)/5000rpm
Supercharger: ×
Fuel tank, liters: 69 l
Fuel: Unleaded premium gasoline
Fuel consumption, l/100km: 0

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: ダブルウィッシュボーン( Coil spring )
Rear suspension: マルチリンク( Coil spring )
Front brake: Ventilated disk
Rear brake: disk
Front wheel: 225/45R17
Rear wheel: 225/45R17
Min turn diameter, m: ----

Gearbox

Number of stages: 4AT
Drive: FF
LSD: ----

Exterior equipment

Front fog lights: ✓
Rear fog lights: ✓
Xenon: ✓
Extra front lights: ×
Spoilers (f / r): ◯ / ◯
Wiper: ×

Navigation & sound

Navigation: ✓
Navigation device: CD
Audio: AM/FMラジオ
CD player: 連装

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
—	—	—	—	—	—	—	—	—	----

Available colors

black / Other blackwhitegreen / Other greenMaroon (brown) / Other Maroon (brown)OliveNavy blue / Other Navy bluePurpleAshesYellowYellow-greenBlack (P) / Other Black (P)MagentaSilver / Other SilverRedBlueDark cyanPearlGold
