AUDI A1 SPORTBACK 1.4 TFSI

AUDI A1 SPORTBACK

8XCAX · 1.4 TFSI

Description

Modification: 1.4 TFSI
Chassis ID: 8XCAX
Dates releasing: 2013.7~
Base price, ¥: DBA-8XCAX
Body size: 3970x1745x1440
Interior (LxWxH): ----x----x----
Wheelbase: 2465
Track f/r: 1465mm/1460mm
Full weight, kg: 1220
Body type: Hatch
Doors / seats: 5 door / 5

Safe equipment

Driver's air bag: ✓
Front passenger air bag: ✓
Side airbags: ✓
ABS: ✓
TRC: ✓
Belts w/ tensioner: ✓
Belts w/ effort limiter: ✓
Belts w/ holding: ✓
Child-seat fixation: ×
Safety planks: ✓
Brake assist: ✓
Energy-absorbing body: ×
EBD: ✓
Anti-theft device: ✓
Additional equipment: ESC(エレクトロニックスタビリゼーションコントロール)

Comfort

Air conditioner: Full Auto
Power window: ✓
Central switch: ✓
Steering column length: ✓
Steering column height: ✓
Cruise control: ◯
Leather steering wheel: ✓
Leather seats: —
Power front seat: ×
Power rear seat: ×
Wood panel: ×
Sunroof: ×
Alloy wheels: 15 inches standard
Folding seat: split
Glass w/ UV filter: ×
Toned glasses: ×

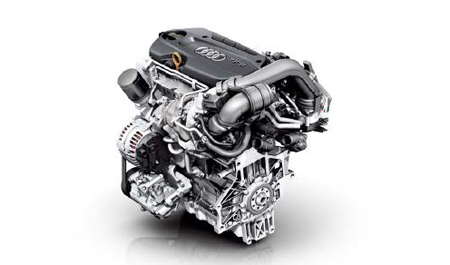

Engine

Model: CAX
Type: inline 4 cylinder DOHC 16-valves IC-turbo
Bore x stroke, mm: 76.5x75.6
Engine size, cc: 1389
Compression ratio: 10.0
Fuel injection: 電子制御
Max power, hp/rpm: 122ps(90kW)/5000rpm
Max torque, Nm/rpm: 20.4kg m(200N m)/1500~4000rpm
Supercharger: IC turbo
Fuel tank, liters: 45 l
Fuel: Unleaded premium gasoline
Fuel consumption, l/100km: 5.6

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: McPherson Strut
Rear suspension: トーションビーム
Front brake: Ventilated disk
Rear brake: disk
Front wheel: 205/55R15
Rear wheel: 205/55R15
Min turn diameter, m: 5.0

Gearbox

Number of stages: 7AT
Drive: FF
LSD: ----

Exterior equipment

Front fog lights: ✓
Rear fog lights: ✓
Xenon: ◯
Extra front lights: ×
Spoilers (f / r): × / ×
Wiper: ✓

Navigation & sound

Navigation: ◯
Navigation device: HDD
Audio: AM/FMラジオ
CD player: 単装

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
—	3.500	2.086	1.342	0.933	0.973	0.777	0.653	—	3.722

Available colors

black / Other blackwhite / Other white / Glacier White MetallicgreenMaroon (brown) / Other Maroon (brown)OliveNavy blue / Other Navy bluePurpleAshesYellowYellow-greenBlack (P)MagentaSilver / Other SilverRed / Other RedBlueDark cyanPearlGold
