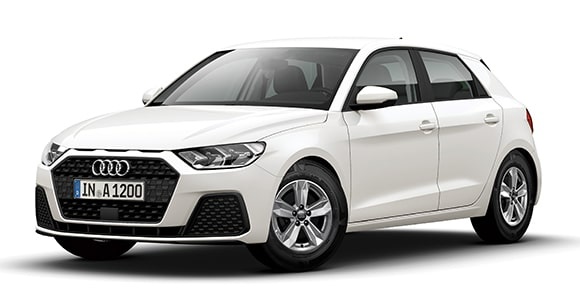

AUDI A1 SPORTBACK 25 TFSI ADVANCED

AUDI A1 SPORTBACK

GBDKL · 25 TFSI ADVANCED

Description

Modification: 25 TFSI ADVANCED
Chassis ID: GBDKL
Dates releasing: 2022.9~
Base price, ¥: 3BA-GBDKL
Body size: 4040x1740x1435
Interior (LxWxH): ----x----x----
Wheelbase: 2560
Track f/r: 1525mm/1500mm
Full weight, kg: 1170
Body type: Hatch
Doors / seats: 5 door / 5

Safe equipment

Driver's air bag: ✓
Front passenger air bag: ✓
Side airbags: ✓
ABS: ✓
TRC: ✓
Belts w/ tensioner: ✓
Belts w/ effort limiter: ✓
Belts w/ holding: ✓
Child-seat fixation: ×
Safety planks: ✓
Brake assist: ✓
Energy-absorbing body: ×
EBD: ✓
Anti-theft device: ✓
Additional equipment: ×

Comfort

Air conditioner: Manual
Power window: ✓
Central switch: ✓
Steering column length: ✓
Steering column height: ✓
Cruise control: ◯
Leather steering wheel: ✓
Leather seats: —
Power front seat: ×
Power rear seat: ×
Wood panel: ×
Sunroof: ×
Alloy wheels: 16 inches standard
Folding seat: 一体
Glass w/ UV filter: ×
Toned glasses: ×

Engine

Model: DKL
Type: inline 3 cylinder DOHC 12-valves IC-turbo
Bore x stroke, mm: 74.5x76.4
Engine size, cc: 999
Compression ratio: 10.3
Fuel injection: 電子
Max power, hp/rpm: 95ps(70kW)/5000~5500rpm
Max torque, Nm/rpm: 17.8kg m(175N m)/2000~3500rpm
Supercharger: IC turbo
Fuel tank, liters: 40 l
Fuel: Unleaded premium gasoline
Fuel consumption, l/100km: 6.1

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: McPherson Strut
Rear suspension: トレーリングアーム
Front brake: disk
Rear brake: Drum
Front wheel: 195/55R16
Rear wheel: 195/55R16
Min turn diameter, m: 5.1

Gearbox

Number of stages: 7AT
Drive: FF
LSD: ----

Exterior equipment

Front fog lights: ×
Rear fog lights: ✓
Xenon: ×
Extra front lights: ×
Spoilers (f / r): × / ×
Wiper: ✓

Navigation & sound

Navigation: ◯
Navigation device: メモ
Audio: It is not
CD player: ×

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
—	3.764	2.272	1.531	1.121	1.176	0.951	0.795	—	4.169

Available colors

black / Mythos Black Metallicwhite / Other white / Glacier White MetallicgreenMaroon (brown)OliveNavy blue / Other Navy bluePurpleAshes / Other AshesYellow / Other YellowYellow-greenBlack (P)MagentaSilverRed / Other RedBlueDark cyanPearlGold
