JDM Vehicle Catalog

Vehicle Specs

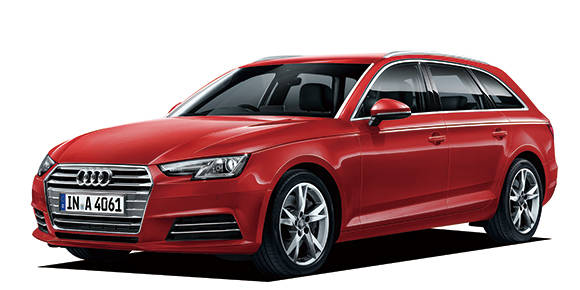

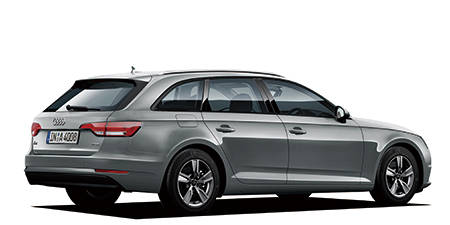

AUDI A4 AVANT 1.4 TFSI

AUDI A4 AVANT

8WCVN · 1.4 TFSI

Description

Modification: 1.4 TFSI
Chassis ID: 8WCVN
Dates releasing: 2016.10~
Base price, ¥: ABA-8WCVN
Body size: 4735x1840x1455
Interior (LxWxH): ----x----x----
Wheelbase: 2825
Track f/r: 1570mm/1555mm
Full weight, kg: 1490
Body type: Wagon
Doors / seats: 5 door / 5

Safe equipment

Driver's air bag: ✓
Front passenger air bag: ✓
Side airbags: ✓
ABS: ✓
TRC: ✓
Belts w/ tensioner: ✓
Belts w/ effort limiter: ✓
Belts w/ holding: ✓
Child-seat fixation: ×
Safety planks: ✓
Brake assist: ✓
Energy-absorbing body: ×
EBD: ✓
Anti-theft device: ✓
Additional equipment: ×

Comfort

Air conditioner: Full Auto
Power window: ✓
Central switch: ✓
Steering column length: ✓
Steering column height: ✓
Cruise control: ✓
Leather steering wheel: ✓
Leather seats: —
Power front seat: ×
Power rear seat: ×
Wood panel: ◯
Sunroof: ◯
Alloy wheels: 16 inches standard
Folding seat: split
Glass w/ UV filter: ✓
Toned glasses: ◯

Engine

Model: CVN
Type: inline 4 cylinder DOHC 16-valves IC-turbo
Bore x stroke, mm: 74.5x80.0
Engine size, cc: 1394
Compression ratio: 10.0
Fuel injection: 電子
Max power, hp/rpm: 150ps(110kW)/5000~6000rpm
Max torque, Nm/rpm: 25.5kg m(250N m)/1500~3500rpm
Supercharger: IC turbo
Fuel tank, liters: 54 l
Fuel: Unleaded premium gasoline
Fuel consumption, l/100km: 6

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: ウィッシュボーン
Rear suspension: ウィッシュボーン
Front brake: Ventilated disk
Rear brake: disk
Front wheel: 205/60 R16
Rear wheel: 205/60 R16
Min turn diameter, m: 5.5

Gearbox

Number of stages: 7AT
Drive: FF
LSD: ----

Exterior equipment

Front fog lights: ×
Rear fog lights: ×
Xenon: ✓
Extra front lights: ×
Spoilers (f / r): × / ×
Wiper: ✓

Navigation & sound

Navigation: ✓
Navigation device: メモ
Audio: AM/FMラジオ
CD player: 単装

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
—	3.187	2.190	1.517	1.057	0.738	0.557	0.432	—	2.750

Available colors

black / Mythos Black Metallicwhite / Other white / Glacier White MetallicgreenMaroon (brown) / Other Maroon (brown)OliveNavy blue / Other Navy bluePurpleAshes / Other AshesYellowYellow-greenBlack (P)MagentaSilver / Other SilverRed / Other RedBlueDark cyanPearlGold
