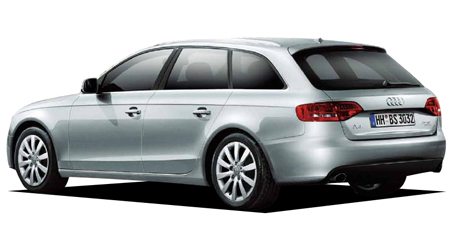

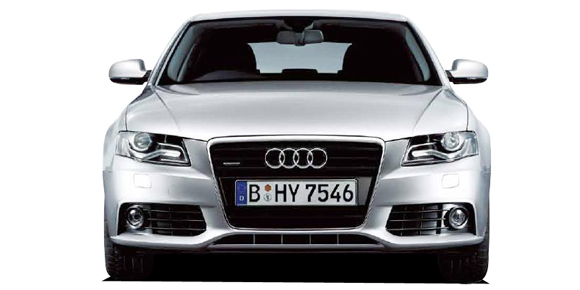

AUDI A4 AVANT 2.0 TFSI

AUDI A4 AVANT

8KCDN · 2.0 TFSI

Description

Modification: 2.0 TFSI
Chassis ID: 8KCDN
Dates releasing: 2011.10~
Base price, ¥: DBA-8KCDN
Body size: 4705x1825x1465
Interior (LxWxH): ----x----x----
Wheelbase: 2810
Track f/r: 1550mm/1540mm
Full weight, kg: 1590
Body type: Wagon
Doors / seats: 5 door / 5

Safe equipment

Driver's air bag: ✓
Front passenger air bag: ✓
Side airbags: ✓
ABS: ✓
TRC: ✓
Belts w/ tensioner: ✓
Belts w/ effort limiter: ✓
Belts w/ holding: ✓
Child-seat fixation: ×
Safety planks: ✓
Brake assist: ✓
Energy-absorbing body: ×
EBD: ✓
Anti-theft device: ✓
Additional equipment: ESP(エレクトロ二ックスタビリゼーション PRO グラム) EDS(エレクトロニックデ&#1245

Comfort

Air conditioner: Dual air conditioning
Power window: ✓
Central switch: ✓
Steering column length: ✓
Steering column height: ✓
Cruise control: ◯
Leather steering wheel: ✓

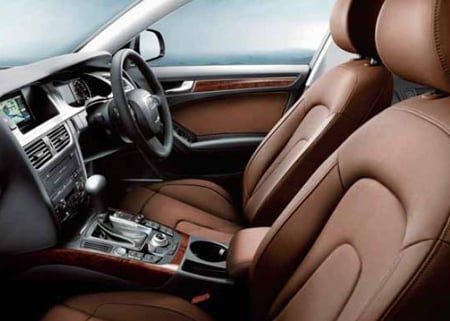

Leather seats: —
Power front seat: ✓
Power rear seat: ×
Wood panel: ◯

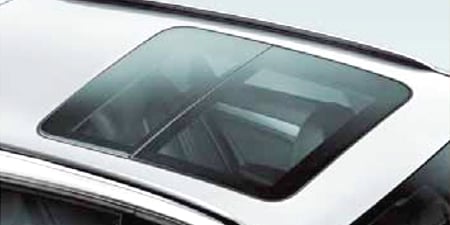

Sunroof: ◯
Alloy wheels: 17 inches standard
Folding seat: split
Glass w/ UV filter: ✓
Toned glasses: ×

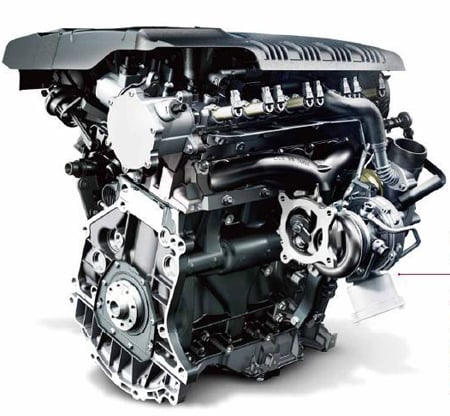

Engine

Model: CDN
Type: inline 4 cylinder DOHC 16-valves IC-turbo
Bore x stroke, mm: 82.5x92.8
Engine size, cc: 1984
Compression ratio: 9.8
Fuel injection: 電子
Max power, hp/rpm: 180ps(132kW)/4000~6000rpm
Max torque, Nm/rpm: 32.6kg m(320N m)/1500~3900rpm
Supercharger: IC turbo
Fuel tank, liters: 65 l
Fuel: Unleaded premium gasoline
Fuel consumption, l/100km: 7.9

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: 5リンク+スタビライザーバー
Rear suspension: トラペゾイダル+スタビライザーバ&#12540
Front brake: Ventilated disk
Rear brake: disk
Front wheel: 225/50R17
Rear wheel: 225/50R17
Min turn diameter, m: 5.5

Gearbox

Number of stages: CVT
Drive: FF
LSD: ----

Exterior equipment

Front fog lights: ✓
Rear fog lights: ✓

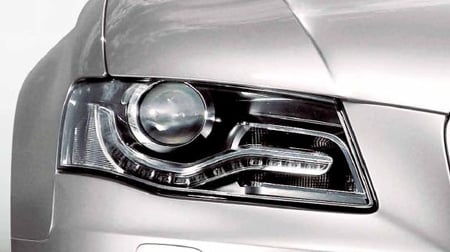

Xenon: ✓
Extra front lights: ×
Spoilers (f / r): × / ◯
Wiper: ✓

Navigation & sound

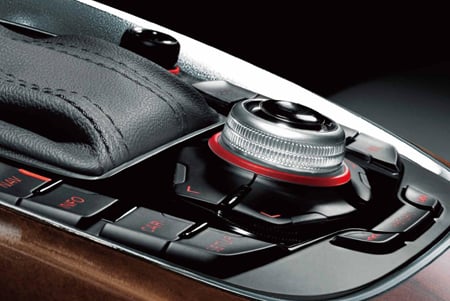

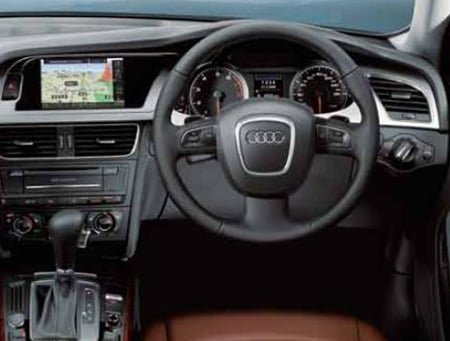

Navigation: ✓
Navigation device: HDD
Audio: AM/FMラジオ
CD player: 連装

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
2.400~0.400	—	—	—	—	—	—	—	—	2.400

Available colors

black / Other blackwhite / Other whitegreenMaroon (brown)OliveNavy blue / Other Navy bluePurpleAshes / Other AshesYellowYellow-greenBlack (P)MagentaSilver / Other SilverRed / Other RedBlue / Other BlueDark cyanPearlGold
