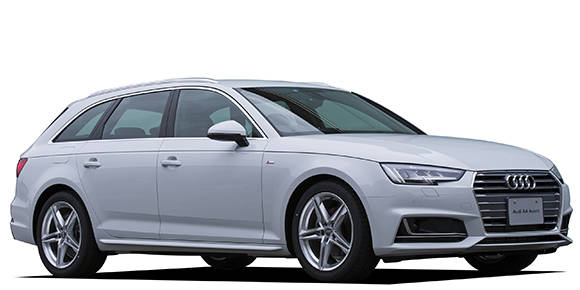

AUDI A4 AVANT 2.0 TFSI QUATTRO

AUDI A4 AVANT

8WCYRF · 2.0 TFSI QUATTRO

Description

Modification: 2.0 TFSI QUATTRO
Chassis ID: 8WCYRF
Dates releasing: 2016.4~
Base price, ¥: ABA-8WCYRF
Body size: 4735x1840x1455
Interior (LxWxH): ----x----x----
Wheelbase: 2825
Track f/r: 1565mm/1550mm
Full weight, kg: 1680
Body type: Wagon
Doors / seats: 5 door / 5

Safe equipment

Driver's air bag: ✓
Front passenger air bag: ✓
Side airbags: ✓
ABS: ✓
TRC: ✓
Belts w/ tensioner: ✓
Belts w/ effort limiter: ✓
Belts w/ holding: ✓
Child-seat fixation: ×
Safety planks: ✓
Brake assist: ✓
Energy-absorbing body: ×
EBD: ✓
Anti-theft device: ✓
Additional equipment: ×

Comfort

Air conditioner: Dual air conditioning
Power window: ✓
Central switch: ✓
Steering column length: ✓
Steering column height: ✓
Cruise control: ✓
Leather steering wheel: ✓
Leather seats: —
Power front seat: ✓
Power rear seat: ×
Wood panel: ◯
Sunroof: ◯
Alloy wheels: 17 inches standard

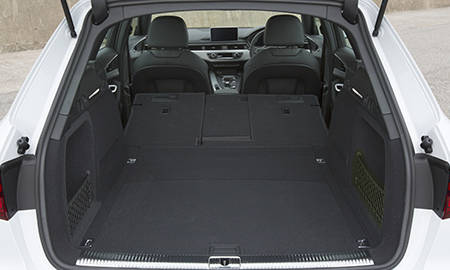

Folding seat: split
Glass w/ UV filter: ✓
Toned glasses: ◯

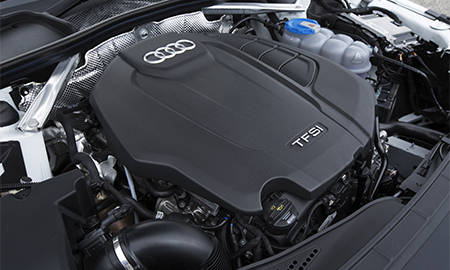

Engine

Model: CYR
Type: inline 4 cylinder DOHCIC-turbo
Bore x stroke, mm: 82.5x92.8
Engine size, cc: 1984
Compression ratio: 9.6
Fuel injection: 電子
Max power, hp/rpm: 252ps(185kW)/5000~6000rpm
Max torque, Nm/rpm: 37.7kg m(370N m)/1600~4500rpm
Supercharger: IC turbo
Fuel tank, liters: 58 l
Fuel: Unleaded premium gasoline
Fuel consumption, l/100km: 6.4

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: ウィッシュボーン
Rear suspension: ウィッシュボーン
Front brake: Ventilated disk
Rear brake: disk
Front wheel: 225/50 R17
Rear wheel: 225/50 R17
Min turn diameter, m: 5.5

Gearbox

Number of stages: 7AT
Drive: Full-time 4WD
LSD: ----

Exterior equipment

Front fog lights: ✓
Rear fog lights: ×
Xenon: ✓
Extra front lights: ×
Spoilers (f / r): × / ×
Wiper: ✓

Navigation & sound

Navigation: ✓
Navigation device: HDD
Audio: AM/FMラジオ
CD player: 単装

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
—	3.187	2.190	1.517	1.057	0.738	0.557	0.432	—	2.750

Available colors

black / Mythos Black Metallicwhite / Other white / Glacier White MetallicgreenMaroon (brown) / Other Maroon (brown)OliveNavy blue / Other Navy bluePurpleAshes / Other AshesYellowYellow-greenBlack (P)MagentaSilver / Other SilverRed / Other RedBlueDark cyanPearlGold
