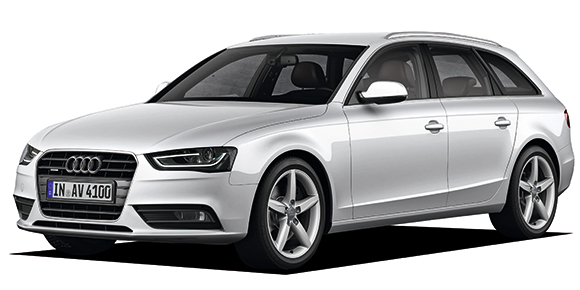

AUDI A4 AVANT 2.0TFSI QUATTRO URBAN STYLE EDITION

AUDI A4 AVANT

8KCDNF · 2.0TFSI QUATTRO URBAN STYLE EDITION

Description

Modification: 2.0TFSI QUATTRO URBAN STYLE EDITION
Chassis ID: 8KCDNF
Dates releasing: 2014.9~
Base price, ¥: DBA-8KCDNF
Body size: 4720x1825x1465
Interior (LxWxH): ----x----x----
Wheelbase: 2810
Track f/r: 1550mm/1535mm
Full weight, kg: 1730
Body type: Wagon
Doors / seats: 5 door / 5

Safe equipment

Driver's air bag: ✓
Front passenger air bag: ✓
Side airbags: ✓
ABS: ✓
TRC: ✓
Belts w/ tensioner: ✓
Belts w/ effort limiter: ✓
Belts w/ holding: ✓
Child-seat fixation: ×
Safety planks: ✓
Brake assist: ✓
Energy-absorbing body: ×
EBD: ✓
Anti-theft device: ✓
Additional equipment: ESC(エレクトロ二ックスタビリゼーションコントロール)

Comfort

Air conditioner: Dual air conditioning
Power window: ✓
Central switch: ✓
Steering column length: ✓
Steering column height: ✓
Cruise control: ×
Leather steering wheel: ✓
Leather seats: —
Power front seat: ✓
Power rear seat: ×
Wood panel: ×
Sunroof: ×
Alloy wheels: 17 inches standard
Folding seat: split
Glass w/ UV filter: ✓
Toned glasses: ×

Engine

Model: CDN
Type: inline 4 cylinder DOHC 16-valves IC-turbo
Bore x stroke, mm: 82.5x92.8
Engine size, cc: 1984
Compression ratio: 9.8
Fuel injection: 電子
Max power, hp/rpm: 211ps(155kW)/4300~6000rpm
Max torque, Nm/rpm: 35.7kg m(350N m)/1500~4200rpm
Supercharger: IC turbo
Fuel tank, liters: 61 l
Fuel: Unleaded premium gasoline
Fuel consumption, l/100km: 7.3

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: 5リンク+スタビライザーバー
Rear suspension: トラペゾイダル+スタビライザーバ&#12540
Front brake: Ventilated disk
Rear brake: disk
Front wheel: 225/50R17
Rear wheel: 225/50R17
Min turn diameter, m: 5.5

Gearbox

Number of stages: 7AT
Drive: Full-time 4WD
LSD: ----

Exterior equipment

Front fog lights: ✓
Rear fog lights: ×
Xenon: ✓
Extra front lights: ×
Spoilers (f / r): × / ×
Wiper: ✓

Navigation & sound

Navigation: ✓
Navigation device: HDD
Audio: AM/FMラジオ
CD player: 単装

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
—	3.692	2.150	1.406	1.025	0.787	0.625	0.519	—	2.944

Available colors

blackwhite / Glacier White MetallicgreenMaroon (brown)OliveNavy bluePurpleAshes / Other AshesYellowYellow-greenBlack (P)MagentaSilverRedBlueDark cyanPearlGold
