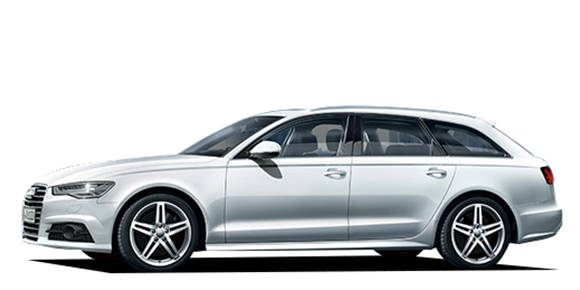

AUDI A6 AVANT 1.8 TFSI

AUDI A6 AVANT

4GCYG · 1.8 TFSI

Description

Modification: 1.8 TFSI
Chassis ID: 4GCYG
Dates releasing: 2018.1~
Base price, ¥: ABA-4GCYG
Body size: 4955x1875x1495
Interior (LxWxH): ----x----x----
Wheelbase: 2910
Track f/r: 1625mm/1615mm
Full weight, kg: 1740
Body type: Wagon
Doors / seats: 5 door / 5

Safe equipment

Driver's air bag: ✓
Front passenger air bag: ✓
Side airbags: ✓
ABS: ✓
TRC: ✓
Belts w/ tensioner: ✓
Belts w/ effort limiter: ✓
Belts w/ holding: ✓
Child-seat fixation: ×
Safety planks: ✓
Brake assist: ✓
Energy-absorbing body: ×
EBD: ✓
Anti-theft device: ✓
Additional equipment: ESC(エレクトロニックスタビリゼーションコントロール)

Comfort

Air conditioner: Full Auto
Power window: ✓
Central switch: ✓
Steering column length: ✓
Steering column height: ✓
Cruise control: ✓
Leather steering wheel: ✓
Leather seats: —
Power front seat: ✓
Power rear seat: ×
Wood panel: ◯
Sunroof: ◯
Alloy wheels: 17 inches standard
Folding seat: 一体
Glass w/ UV filter: ×
Toned glasses: ◯

Engine

Model: CYG
Type: inline 4 cylinder DOHC 16-valves turbo
Bore x stroke, mm: 82.5x84.1
Engine size, cc: 1798
Compression ratio: 9.6
Fuel injection: 電子
Max power, hp/rpm: 190ps(140kW)/4200~6200rpm
Max torque, Nm/rpm: 32.6kg m(320N m)/1400~4100rpm
Supercharger: Turbo
Fuel tank, liters: 65 l
Fuel: Unleaded premium gasoline
Fuel consumption, l/100km: 6.5

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: 5リンク Double wishbone スタビライザーバー
Rear suspension: トラペゾイダルウィッシュボーンス
Front brake: Ventilated disk
Rear brake: disk
Front wheel: 225/55R17
Rear wheel: 225/55R17
Min turn diameter, m: 5.7

Gearbox

Number of stages: 7AT
Drive: FF
LSD: ----

Exterior equipment

Front fog lights: ×
Rear fog lights: ×
Xenon: ✓
Extra front lights: ×
Spoilers (f / r): ✓ / ✓
Wiper: ×

Navigation & sound

Navigation: ✓
Navigation device: メモ
Audio: AM/FMラジオ
CD player: 単装

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
—	3.187	2.190	1.517	1.057	0.738	0.557	0.432	—	2.750

Available colors

black / Mythos Black Metallicwhite / Other white / Glacier White MetallicgreenMaroon (brown) / Other Maroon (brown)OliveNavy blue / Other Navy bluePurpleAshesYellowYellow-greenBlack (P)MagentaSilver / Other SilverRedBlueDark cyanPearlGold / Other Gold
