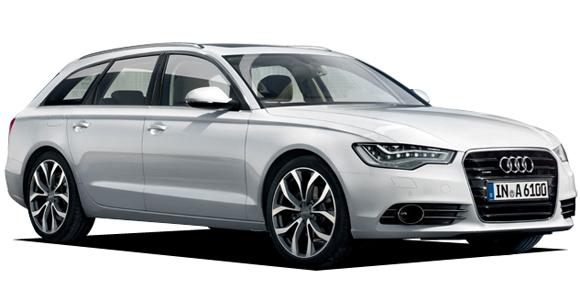

AUDI A6 AVANT 2.0 TFSI

AUDI A6 AVANT

4GCDN · 2.0 TFSI

Description

Modification: 2.0 TFSI
Chassis ID: 4GCDN
Dates releasing: 2014.4~
Base price, ¥: DBA-4GCDN
Body size: 4940x1875x1495
Interior (LxWxH): ----x----x----
Wheelbase: 2910
Track f/r: 1625mm/1615mm
Full weight, kg: 1700
Body type: Wagon
Doors / seats: 5 door / 5

Safe equipment

Driver's air bag: ✓
Front passenger air bag: ✓
Side airbags: ✓
ABS: ✓
TRC: ✓
Belts w/ tensioner: ✓
Belts w/ effort limiter: ✓
Belts w/ holding: ✓
Child-seat fixation: ×
Safety planks: ✓
Brake assist: ✓
Energy-absorbing body: ×
EBD: ✓
Anti-theft device: ✓
Additional equipment: ESC(エレクトロニックスタビリゼーションコントロール) EPB(エレクトロメカ&#1

Comfort

Air conditioner: Full Auto
Power window: ✓
Central switch: ✓
Steering column length: ×
Steering column height: ×
Cruise control: ✓
Leather steering wheel: ✓
Leather seats: —
Power front seat: ✓
Power rear seat: ×
Wood panel: ✓
Sunroof: ◯
Alloy wheels: 17 inches standard
Folding seat: split
Glass w/ UV filter: ×
Toned glasses: ×

Engine

Model: CDN
Type: inline 4 cylinder DOHCIC-turbo
Bore x stroke, mm: 82.5x92.8
Engine size, cc: 1984
Compression ratio: 9.8
Fuel injection: 電子
Max power, hp/rpm: 180ps(132kW)/4000~6000rpm
Max torque, Nm/rpm: 32.6kg m(320N m)/1500~3900rpm
Supercharger: IC turbo
Fuel tank, liters: 75 l
Fuel: Unleaded premium gasoline
Fuel consumption, l/100km: 6.8

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: 5リンク Double wishbone スタビライザーバー
Rear suspension: トラペゾイダルウィッシュボーンス
Front brake: Ventilated disk
Rear brake: disk
Front wheel: 225/55R17
Rear wheel: 225/55R17
Min turn diameter, m: 5.7

Gearbox

Number of stages: CVT
Drive: FF
LSD: ----

Exterior equipment

Front fog lights: ×
Rear fog lights: ✓
Xenon: ✓
Extra front lights: ×
Spoilers (f / r): × / ×
Wiper: ×

Navigation & sound

Navigation: ✓
Navigation device: HDD
Audio: AM/FMラジオ
CD player: 単装

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
2.511~0.370	—	—	—	—	—	—	—	—	3.048

Available colors

black / Brilliant Black / Other blackwhite / Other white / Glacier White MetallicgreenMaroon (brown)OliveNavy blue / Other Navy bluePurpleAshes / Other AshesYellowYellow-greenBlack (P)MagentaSilver / Other SilverRedBlueDark cyanPearlGold
