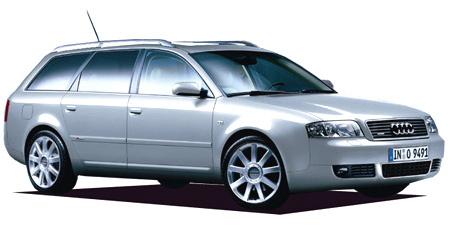

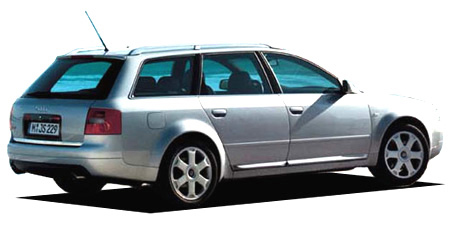

AUDI A6 AVANT 2.4

AUDI A6 AVANT

4BBDV · 2.4

Description

Modification: 2.4
Chassis ID: 4BBDV
Dates releasing: 2004.4~
Base price, ¥: GH-4BBDV
Body size: 4805x1810x1485
Interior (LxWxH): ----x----x----
Wheelbase: 2765
Track f/r: 1535mm/1570mm
Full weight, kg: 1620
Body type: Wagon
Doors / seats: 5 door / 5

Safe equipment

Driver's air bag: ✓
Front passenger air bag: ✓
Side airbags: ✓
ABS: ✓
TRC: ✓
Belts w/ tensioner: ✓
Belts w/ effort limiter: ✓
Belts w/ holding: ✓
Child-seat fixation: ×
Safety planks: ✓
Brake assist: ✓
Energy-absorbing body: ×
EBD: ✓
Anti-theft device: ✓
Additional equipment: ESP(エレクトロニックスタビリゼーション PRO グラム)

Comfort

Air conditioner: Full Auto
Power window: ✓
Central switch: ✓
Steering column length: ✓
Steering column height: ✓
Cruise control: ×
Leather steering wheel: ✓
Leather seats: —
Power front seat: ✓
Power rear seat: ×
Wood panel: ✓
Sunroof: ◯
Alloy wheels: 16 inches standard
Folding seat: split
Glass w/ UV filter: ×
Toned glasses: ×

Engine

Model: BDV
Type: water cooling V-type 6 cylinder DOHC 30-valves
Bore x stroke, mm: 81.0x77.4
Engine size, cc: 2393
Compression ratio: 10.5
Fuel injection: 電子
Max power, hp/rpm: 170ps(125kW)/6000rpm
Max torque, Nm/rpm: 23.5kg m(230N m)/3200rpm
Supercharger: ×
Fuel tank, liters: 70 l
Fuel: Unleaded premium gasoline
Fuel consumption, l/100km: 10.5

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: 4リンク+スタビライザーバー
Rear suspension: トーションビーム
Front brake: Ventilated disk
Rear brake: disk
Front wheel: 205/55R16
Rear wheel: 205/55R16
Min turn diameter, m: 5.4

Gearbox

Number of stages: CVT
Drive: FF
LSD: ----

Exterior equipment

Front fog lights: ✓
Rear fog lights: ✓
Xenon: ◯
Extra front lights: ×
Spoilers (f / r): × / ×
Wiper: ✓

Navigation & sound

Navigation: ✓
Navigation device: DVD
Audio: AM/FM radio with MD player
CD player: 連装

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
2.400~0.400	—	—	—	—	—	—	—	—	2.400

Available colors

black / Other blackwhite / Arctic Whitegreen / Other greenMaroon (brown) / Other Maroon (brown)OliveNavy blue / Other Navy bluePurpleAshes / Other AshesYellowYellow-greenBlack (P)MagentaSilver / Other SilverRedBlue / Other BlueDark cyanPearlGold
