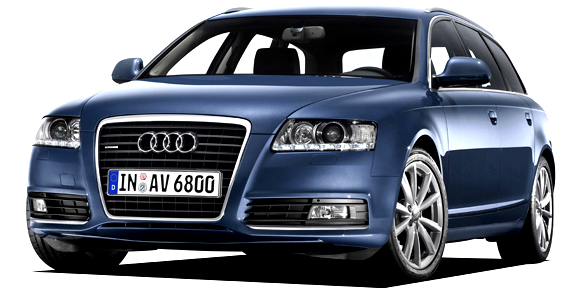

AUDI A6 AVANT 2.8 FSI QUATTRO

AUDI A6 AVANT

4FCCEA · 2.8 FSI QUATTRO

Description

Modification: 2.8 FSI QUATTRO
Chassis ID: 4FCCEA
Dates releasing: 2010.8~
Base price, ¥: ABA-4FCCEA
Body size: 4925x1855x1460
Interior (LxWxH): ----x----x----
Wheelbase: 2845
Track f/r: 1585mm/1590mm
Full weight, kg: 1860
Body type: Wagon
Doors / seats: 5 door / 5

Safe equipment

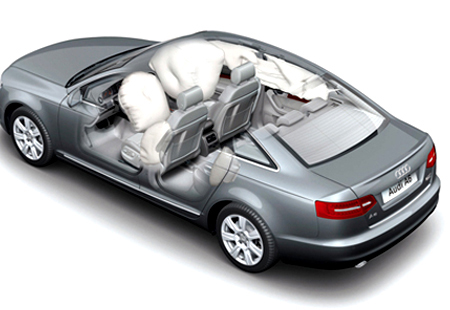

Driver's air bag: ✓
Front passenger air bag: ✓
Side airbags: ✓
ABS: ✓
TRC: ✓
Belts w/ tensioner: ✓
Belts w/ effort limiter: ✓
Belts w/ holding: ✓
Child-seat fixation: ✓
Safety planks: ✓
Brake assist: ✓
Energy-absorbing body: ×
EBD: ✓
Anti-theft device: ✓
Additional equipment: ESP(エレクトロ二ックスタビリゼーション PRO グラム) EDS(エレクトロニックデ&#1245

Comfort

Air conditioner: Full Auto
Power window: ✓
Central switch: ✓
Steering column length: ✓
Steering column height: ✓
Cruise control: ✓
Leather steering wheel: ✓
Leather seats: —

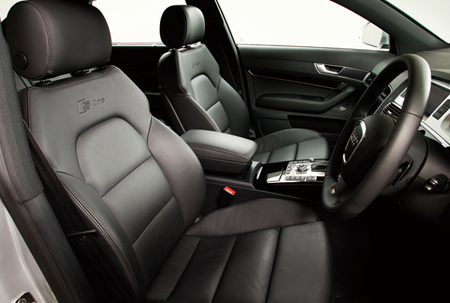

Power front seat: ✓
Power rear seat: ×
Wood panel: ✓
Sunroof: ◯
Alloy wheels: 18 inches standard
Folding seat: split
Glass w/ UV filter: ×
Toned glasses: ×

Engine

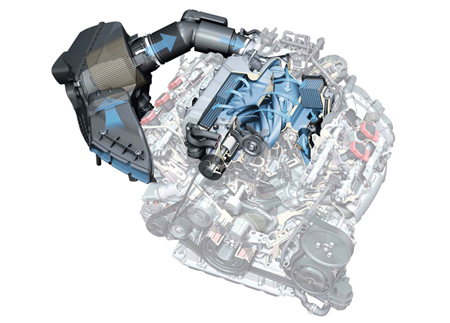

Model: CCE
Type: V-type 6 cylinder DOHC 24-valves
Bore x stroke, mm: 84.5x82.4
Engine size, cc: 2772
Compression ratio: 12.0
Fuel injection: 電子
Max power, hp/rpm: 220ps(162kW)/5750~6800rpm
Max torque, Nm/rpm: 28.6kg m(280N m)/3000~5000rpm
Supercharger: ×
Fuel tank, liters: 80 l
Fuel: Unleaded premium gasoline
Fuel consumption, l/100km: 10.3

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: 4リンク+スタビライザーバー
Rear suspension: トラペゾイダル( Double wishbone )+スタビライザ&#12
Front brake: Ventilated disk
Rear brake: disk

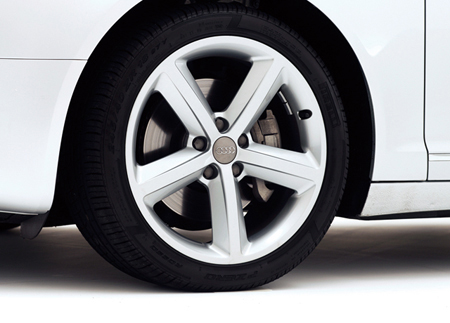

Front wheel: 245/40R18
Rear wheel: 245/40R18
Min turn diameter, m: 5.7

Gearbox

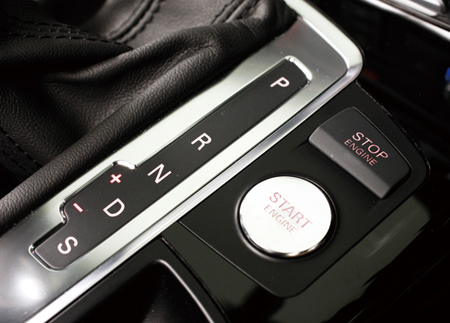

Number of stages: 6AT
Drive: Full-time 4WD
LSD: ----

Exterior equipment

Front fog lights: ✓
Rear fog lights: ✓

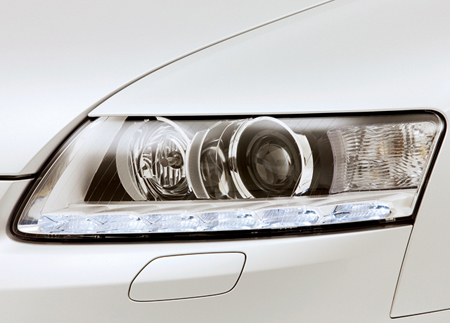

Xenon: ✓
Extra front lights: ×
Spoilers (f / r): ◯ / ◯
Wiper: ✓

Navigation & sound

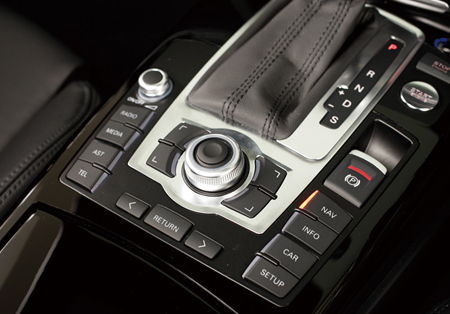

Navigation: ✓
Navigation device: HDD
Audio: AM/FM radio with MD player
CD player: 連装

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
—	4.170	2.339	1.521	1.142	0.867	0.691	—	—	3.402

Available colors

black / Other blackwhite / Other whitegreen / Other greenMaroon (brown)OliveNavy blue / Other Navy bluePurpleAshes / Other AshesYellowYellow-greenBlack (P)MagentaSilver / Other SilverRed / Other RedBlue / Other BlueDark cyanPearlGold / Other Gold
