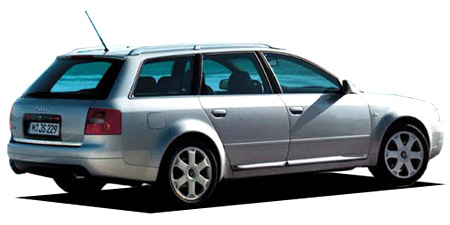

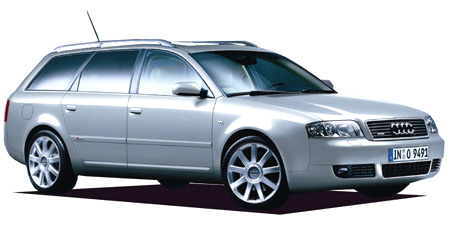

AUDI A6 AVANT 3.0 QUATTRO

AUDI A6 AVANT

4BASNF · 3.0 QUATTRO

Description

Modification: 3.0 QUATTRO
Chassis ID: 4BASNF
Dates releasing: 2004.8~
Base price, ¥: GH-4BASNF
Body size: 4805x1810x1485
Interior (LxWxH): ----x----x----
Wheelbase: 2760
Track f/r: 1535mm/1555mm
Full weight, kg: 1750
Body type: Wagon
Doors / seats: 5 door / 5

Safe equipment

Driver's air bag: ✓
Front passenger air bag: ✓
Side airbags: ✓
ABS: ✓
TRC: ✓
Belts w/ tensioner: ✓
Belts w/ effort limiter: ✓
Belts w/ holding: ✓
Child-seat fixation: ✓
Safety planks: ✓
Brake assist: ✓
Energy-absorbing body: ×
EBD: ✓
Anti-theft device: ✓
Additional equipment: ESP(エレクトロニックスタビリゼーション PRO グラム) EDS(エレクトロニックデ&#1245

Comfort

Air conditioner: Full Auto
Power window: ✓
Central switch: ✓
Steering column length: ✓
Steering column height: ✓
Cruise control: ×
Leather steering wheel: ✓
Leather seats: —
Power front seat: ✓
Power rear seat: ×
Wood panel: ✓
Sunroof: ◯
Alloy wheels: 16 inches standard
Folding seat: split
Glass w/ UV filter: ×
Toned glasses: ×

Engine

Model: ASN
Type: water cooling V-type 6 cylinder DOHC 30-valves
Bore x stroke, mm: 82.5x92.8
Engine size, cc: 2976
Compression ratio: 10.5
Fuel injection: 電子
Max power, hp/rpm: 220ps(162kW)/6300rpm
Max torque, Nm/rpm: 30.6kg m(300N m)/3200rpm
Supercharger: ×
Fuel tank, liters: 70 l
Fuel: Unleaded premium gasoline
Fuel consumption, l/100km: 12.3

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: 4リンク+スタビライザーバー
Rear suspension: Double wishbone
Front brake: Ventilated disk
Rear brake: disk
Front wheel: 215/55R16
Rear wheel: 215/55R16
Min turn diameter, m: 5.4

Gearbox

Number of stages: 5AT
Drive: Full-time 4WD
LSD: ----

Exterior equipment

Front fog lights: ✓
Rear fog lights: ✓
Xenon: ✓
Extra front lights: ×
Spoilers (f / r): × / ×
Wiper: ✓

Navigation & sound

Navigation: ✓
Navigation device: DVD
Audio: AM/FM radio with MD player
CD player: 連装

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
—	3.664	1.998	1.406	1.000	0.742	—	—	—	4.095

Available colors

black / Other blackwhite / Arctic Whitegreen / Other greenMaroon (brown)OliveNavy blue / Other Navy bluePurpleAshesYellowYellow-greenBlack (P)MagentaSilver / Other SilverRedBlueDark cyanPearlGold
