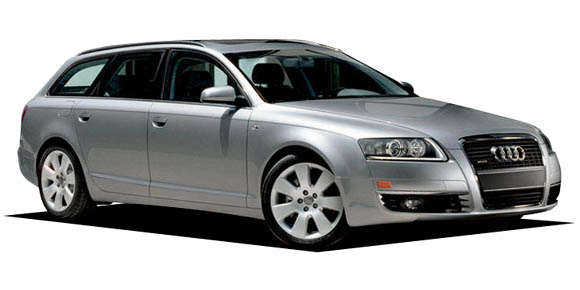

AUDI A6 AVANT 3.2 FSI QUATTRO

AUDI A6 AVANT

4FAUKS · 3.2 FSI QUATTRO

Description

Modification: 3.2 FSI QUATTRO
Chassis ID: 4FAUKS
Dates releasing: 2008.1~
Base price, ¥: ABA-4FAUKS
Body size: 4935x1855x1475
Interior (LxWxH): ----x----x----
Wheelbase: 2845
Track f/r: 1590mm/1600mm
Full weight, kg: 1850

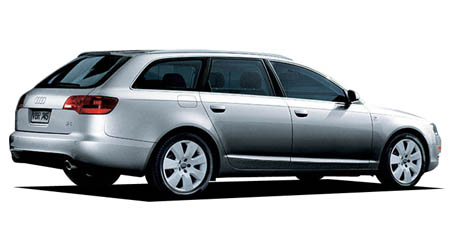

Body type: Wagon
Doors / seats: 5 door / 5

Safe equipment

Driver's air bag: ✓
Front passenger air bag: ✓
Side airbags: ✓
ABS: ✓
TRC: ✓
Belts w/ tensioner: ✓
Belts w/ effort limiter: ✓
Belts w/ holding: ✓
Child-seat fixation: ✓
Safety planks: ✓
Brake assist: ✓
Energy-absorbing body: ×
EBD: ✓
Anti-theft device: ✓
Additional equipment: ESP(エレクトロ二ックスタビリゼーション PRO グラム) EDS(エレクトロニックデ&#1245

Comfort

Air conditioner: Full Auto
Power window: ✓
Central switch: ✓
Steering column length: ✓
Steering column height: ✓
Cruise control: ✓
Leather steering wheel: ✓

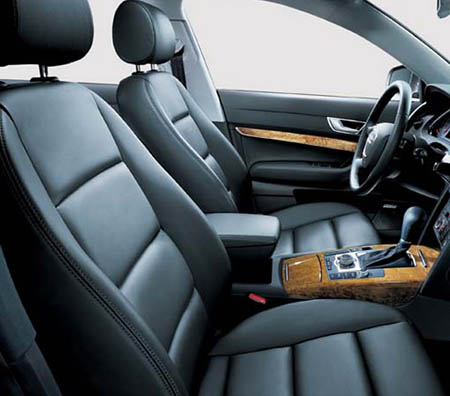

Leather seats: —

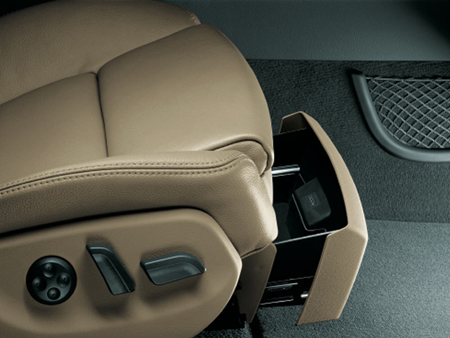

Power front seat: ✓
Power rear seat: ×
Wood panel: ✓
Sunroof: ◯
Alloy wheels: 17 inches standard
Folding seat: split
Glass w/ UV filter: ×
Toned glasses: ×

Engine

Model: AUK

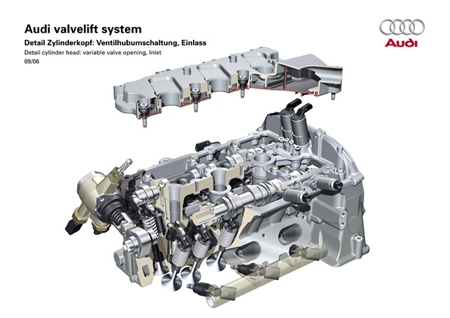

Type: V-type 6 cylinder DOHC 24-valves
Bore x stroke, mm: 84.5x92.8
Engine size, cc: 3122
Compression ratio: 12.5
Fuel injection: 電子
Max power, hp/rpm: 255ps(188kW)/6500rpm
Max torque, Nm/rpm: 33.6kg m(330N m)/3250rpm
Supercharger: ×
Fuel tank, liters: 80 l
Fuel: Unleaded premium gasoline
Fuel consumption, l/100km: 11.5

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: 4リンク+スタビライザーバー
Rear suspension: トラペゾイダル( Double wishbone )+スタビライザ&#12
Front brake: Ventilated disk
Rear brake: disk
Front wheel: 225/50R17
Rear wheel: 225/50R17
Min turn diameter, m: 5.7

Gearbox

Number of stages: 6AT
Drive: Full-time 4WD
LSD: ----

Exterior equipment

Front fog lights: ✓
Rear fog lights: ✓

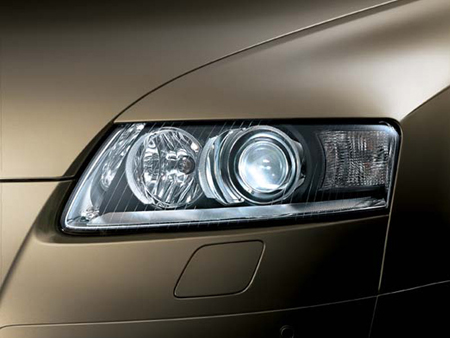

Xenon: ✓
Extra front lights: ×
Spoilers (f / r): ✓ / ✓
Wiper: ✓

Navigation & sound

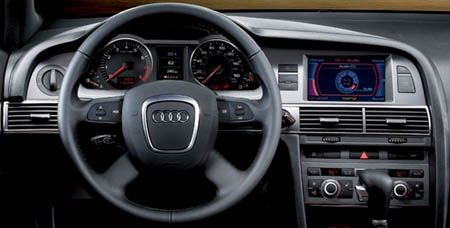

Navigation: ✓
Navigation device: DVD
Audio: AM/FM radio with MD player
CD player: 連装

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
—	4.170	2.339	1.521	1.142	0.867	0.691	—	—	3.402

Available colors

black / Other blackwhite / Other whitegreen / Other greenMaroon (brown)OliveNavy blue / Other Navy bluePurpleAshes / Other AshesYellowYellow-greenBlack (P)MagentaSilver / Other SilverRed / Other RedBlueDark cyanPearlGold / Other Gold
