JDM Vehicle Catalog

Vehicle Specs

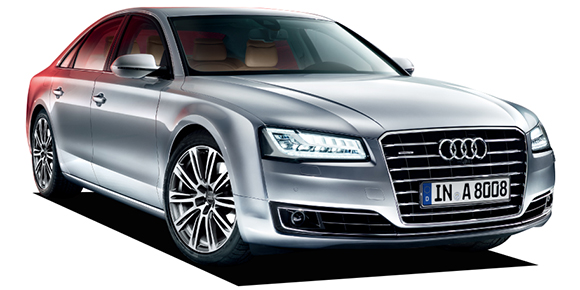

AUDI A8 HYBRID BASE GRADE

AUDI A8 HYBRID

4HCHJA · BASE GRADE

Description

Modification: BASE GRADE
Chassis ID: 4HCHJA
Dates releasing: 2014.8~
Base price, ¥: DAA-4HCHJA
Body size: 5145x1950x1465
Interior (LxWxH): ----x----x----
Wheelbase: 2990
Track f/r: 1640mm/1630mm
Full weight, kg: 1930
Body type: Sedan
Doors / seats: 4 door / 5

Safe equipment

Driver's air bag: ✓
Front passenger air bag: ✓
Side airbags: ✓
ABS: ✓
TRC: ✓
Belts w/ tensioner: ✓
Belts w/ effort limiter: ✓
Belts w/ holding: ✓
Child-seat fixation: ×
Safety planks: ✓
Brake assist: ✓
Energy-absorbing body: ×
EBD: ✓
Anti-theft device: ✓
Additional equipment: ESC(エレクトロニックスタビリゼーションコントロール)、EDS(エレクトロニ&#12

Comfort

Air conditioner: Dual air conditioning
Power window: ✓
Central switch: ✓
Steering column length: ✓
Steering column height: ✓
Cruise control: ✓
Leather steering wheel: ✓
Leather seats: —
Power front seat: ✓
Power rear seat: ×
Wood panel: ✓
Sunroof: ◯
Alloy wheels: 19 inches standard
Folding seat: ×
Glass w/ UV filter: ×
Toned glasses: ◯

Engine

Model: CHJ
Type: inline 4 cylinder DOHCIC-turbo +
Bore x stroke, mm: 82.5x92.8
Engine size, cc: 1984
Compression ratio: 9.8
Fuel injection: 電子
Max power, hp/rpm: 211ps(155kW)/4300~6000rpm
Max torque, Nm/rpm: 35.7kg m(350N m)/1500~4200rpm
Supercharger: IC turbo
Fuel tank, liters: 78 l
Fuel: Unleaded premium gasoline
Fuel consumption, l/100km: 7.2

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: 5リンクサスペンションウイッシュ&#12508
Rear suspension: トラペゾイダルウイッシュボーンア
Front brake: Ventilated disk
Rear brake: Ventilated disk
Front wheel: 255/45R19
Rear wheel: 255/45R19
Min turn diameter, m: 5.8

Gearbox

Number of stages: 8AT
Drive: FF
LSD: ----

Exterior equipment

Front fog lights: ×
Rear fog lights: ✓
Xenon: ×
Extra front lights: ×
Spoilers (f / r): × / ×
Wiper: ×

Navigation & sound

Navigation: ✓
Navigation device: HDD
Audio: AM/FMラジオ
CD player: 連装

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
—	4.714	3.142	2.106	1.666	1.284	1.000	0.839	0.666	3.316

Available colors

black / Brilliant Black / Other blackwhite / Other white / Glacier White MetallicgreenMaroon (brown) / Other Maroon (brown)OliveNavy blue / Other Navy bluePurpleAshes / Other AshesYellowYellow-greenBlack (P)MagentaSilver / Other SilverRedBlueDark cyanPearlGold
