JDM Vehicle Catalog

Vehicle Specs

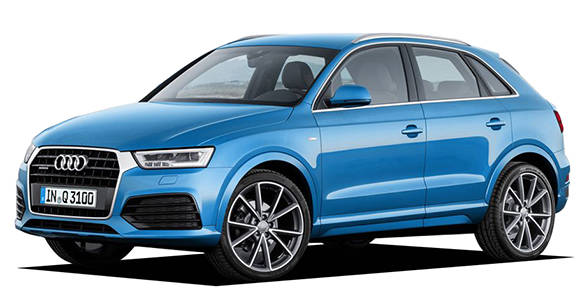

AUDI Q3 2.0TFSI QUATTRO 180PS

AUDI Q3

8UCULB · 2.0TFSI QUATTRO 180PS

Description

Modification: 2.0TFSI QUATTRO 180PS
Chassis ID: 8UCULB
Dates releasing: 2015.5~
Base price, ¥: ABA-8UCULB
Body size: 4400x1830x1595
Interior (LxWxH): ----x----x----
Wheelbase: 2605
Track f/r: 1570mm/1575mm
Full weight, kg: 1620
Body type: SUV
Doors / seats: 5 door / 5

Safe equipment

Driver's air bag: ✓
Front passenger air bag: ✓
Side airbags: ✓
ABS: ✓
TRC: ×
Belts w/ tensioner: ✓
Belts w/ effort limiter: ✓
Belts w/ holding: ✓
Child-seat fixation: ×
Safety planks: ✓
Brake assist: ✓
Energy-absorbing body: ×
EBD: ✓
Anti-theft device: ✓
Additional equipment: ESC(エレクトロニックスタビリゼーションコントロール)

Comfort

Air conditioner: Full Auto
Power window: ✓
Central switch: ×
Steering column length: ×
Steering column height: ×
Cruise control: ◯
Leather steering wheel: ✓
Leather seats: —
Power front seat: ✓
Power rear seat: ×
Wood panel: ◯
Sunroof: ◯
Alloy wheels: 17 inches standard
Folding seat: ×
Glass w/ UV filter: ×
Toned glasses: ◯

Engine

Model: CUL
Type: inline 4 cylinder DOHCIC-turbo
Bore x stroke, mm: 82.5x92.8
Engine size, cc: 1984
Compression ratio: 9.6
Fuel injection: 電子
Max power, hp/rpm: 180ps(132kW)/4000~6200rpm
Max torque, Nm/rpm: 32.6kg m(320N m)/1400~3900rpm
Supercharger: IC turbo
Fuel tank, liters: 63 l
Fuel: Unleaded premium gasoline
Fuel consumption, l/100km: 6.7

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: McPherson Strut
Rear suspension: ウィッシュボーン
Front brake: Ventilated disk
Rear brake: disk
Front wheel: 235/55R17
Rear wheel: 235/55R17
Min turn diameter, m: 5.7

Gearbox

Number of stages: 7AT
Drive: Full-time 4WD
LSD: ----

Exterior equipment

Front fog lights: ×
Rear fog lights: ✓
Xenon: ✓
Extra front lights: ×
Spoilers (f / r): × / ✓
Wiper: ✓

Navigation & sound

Navigation: ◯
Navigation device: HDD
Audio: It is not
CD player: ×

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
—	3.562	2.526	1.678	1.021	0.788	0.760	0.634	—	2.789

Available colors

black / Mythos Black Metallicwhite / Other white / Glacier White MetallicgreenMaroon (brown)OliveNavy bluePurpleAshes / Other AshesYellowYellow-greenBlack (P) / Other Black (P)MagentaSilver / Other SilverRed / Other RedBlueDark cyanPearlGold
