Vehicle Specs

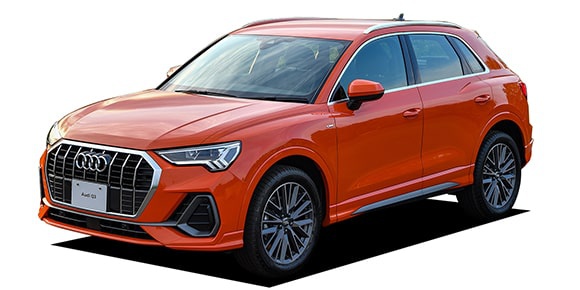

AUDI Q3 35 TDI QUATTRO ADVANCED

AUDI Q3

F3DFGF · 35 TDI QUATTRO ADVANCED

Description

Modification: 35 TDI QUATTRO ADVANCED
Chassis ID: F3DFGF
Dates releasing: 2022.8~
Base price, ¥: 3DA-F3DFGF
Body size: 4490x1840x1610
Interior (LxWxH): ----x----x----
Wheelbase: 2680
Track f/r: 1580mm/1585mm
Full weight, kg: 1700
Body type: SUV
Doors / seats: 5 door / 5

Safe equipment

Driver's air bag: ✓
Front passenger air bag: ✓
Side airbags: ✓
ABS: ✓
TRC: ×
Belts w/ tensioner: ✓
Belts w/ effort limiter: ✓
Belts w/ holding: ✓
Child-seat fixation: ×
Safety planks: ✓
Brake assist: ✓
Energy-absorbing body: ×
EBD: ✓
Anti-theft device: ✓
Additional equipment: ESC

Comfort

Air conditioner: Full Auto
Power window: ✓
Central switch: ✓
Steering column length: ×
Steering column height: ×
Cruise control: ◯
Leather steering wheel: ✓
Leather seats: —
Power front seat: ◯
Power rear seat: ×
Wood panel: ×
Sunroof: ◯
Alloy wheels: 18 inches standard
Folding seat: split
Glass w/ UV filter: ×
Toned glasses: ◯

Engine

Model: DFG
Type: inline 4 cylinder DOHC 16-valves IC-turbo (Diesel)
Bore x stroke, mm: 81.0x95.5
Engine size, cc: 1968
Compression ratio: 16.2
Fuel injection: 電子
Max power, hp/rpm: 150ps(110kW)/3500~4000rpm
Max torque, Nm/rpm: 34.7kg m(340N m)/1750~3000rpm
Supercharger: IC turbo
Fuel tank, liters: 63 l
Fuel: Diesel
Fuel consumption, l/100km: 5.6

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: McPherson Strut
Rear suspension: ウィッシュボーン
Front brake: disk
Rear brake: disk
Front wheel: 235/55R18
Rear wheel: 235/55R18
Min turn diameter, m: 5.4

Gearbox

Number of stages: 7AT
Drive: Full-time 4WD
LSD: ----

Exterior equipment

Front fog lights: ×
Rear fog lights: ×
Xenon: ×
Extra front lights: ×
Spoilers (f / r): × / ×
Wiper: ✓

Navigation & sound

Navigation: ✓
Navigation device: メモ
Audio: AM/FMラジオ
CD player: 単装

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
—	3.578	2.750	1.677	0.888	0.677	0.722	0.560	—	2.900

Available colors

black / Mythos Black Metallicwhite / Other white / Glacier White MetallicgreenMaroon (brown)OliveNavy bluePurpleAshes / Other AshesYellowYellow-greenBlack (P)MagentaSilver / Other SilverRed / Other RedBlueDark cyanPearlGold / Other Gold
