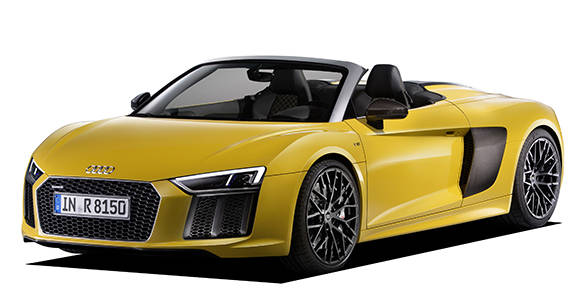

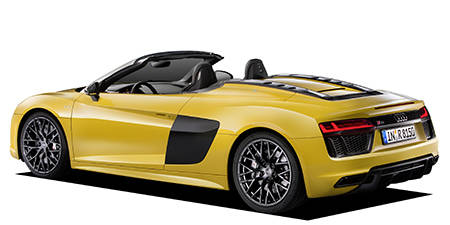

AUDI R8 SPYDER BASEGRADE

AUDI R8 SPYDER

4SDKAF · BASEGRADE

Description

Modification: BASEGRADE
Chassis ID: 4SDKAF
Dates releasing: 2018.7~
Base price, ¥: ABA-4SDKAF
Body size: 4425x1940x1240
Interior (LxWxH): ----x----x----
Wheelbase: 2650
Track f/r: 1645mm/1610mm
Full weight, kg: 1770
Body type: Open
Doors / seats: 2 door / 2

Safe equipment

Driver's air bag: ✓
Front passenger air bag: ✓
Side airbags: ✓
ABS: ✓
TRC: ✓
Belts w/ tensioner: ✓
Belts w/ effort limiter: ✓
Belts w/ holding: ×
Child-seat fixation: ×
Safety planks: ✓
Brake assist: ✓
Energy-absorbing body: ×
EBD: ✓
Anti-theft device: ✓
Additional equipment: ESP(エレクトロニックスタピリゼーション PRO グラム) EDS(エレクトロニックデ&#1245

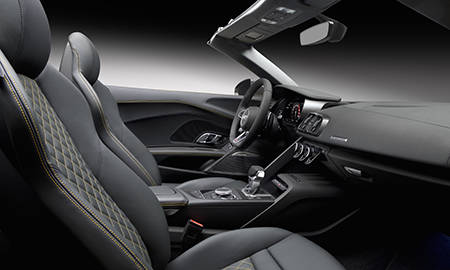

Comfort

Air conditioner: Full Auto
Power window: ✓
Central switch: ✓
Steering column length: ✓
Steering column height: ✓
Cruise control: ✓
Leather steering wheel: ×
Leather seats: —
Power front seat: ✓
Power rear seat: ×
Wood panel: ×
Sunroof: ×
Alloy wheels: 19 inches standard
Folding seat: ×
Glass w/ UV filter: ✓
Toned glasses: ×

Engine

Model: DKA
Type: V-type 10 cylinder DOHC 40-valves
Bore x stroke, mm: 84.5x92.8
Engine size, cc: 5204
Compression ratio: 12.5
Fuel injection: 電子
Max power, hp/rpm: 540ps(397kW)/7800rpm
Max torque, Nm/rpm: 55.1kg m(540N m)/6500rpm
Supercharger: ×
Fuel tank, liters: 80 l
Fuel: Unleaded premium gasoline
Fuel consumption, l/100km: 0

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: Double wishbone
Rear suspension: Double wishbone
Front brake: Ventilated disk
Rear brake: Ventilated disk
Front wheel: 245/35ZR19
Rear wheel: 295/35ZR19
Min turn diameter, m: ----

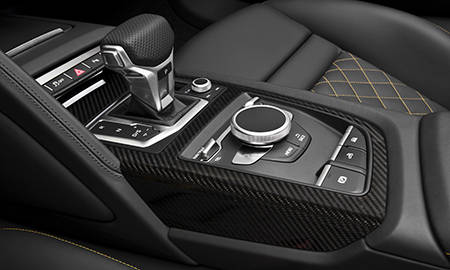

Gearbox

Number of stages: 7AT
Drive: Full-time 4WD
LSD: ----

Exterior equipment

Front fog lights: ×
Rear fog lights: ×
Xenon: ×
Extra front lights: ×
Spoilers (f / r): ✓ / ×
Wiper: ×

Navigation & sound

Navigation: ✓
Navigation device: メモ
Audio: AM/FMラジオ
CD player: 単装

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
—	3.133	2.588	1.880	1.139	0.897	0.883	0.653	—	2.647

Available colors

black / Mythos Black Metallicwhite / Other whitegreen / Other greenMaroon (brown) / Other Maroon (brown)OliveNavy bluePurpleAshes / Other AshesYellow / Other YellowYellow-greenBlack (P)MagentaSilver / Other SilverRed / Other RedBlue / Other BlueDark cyanPearlGold
