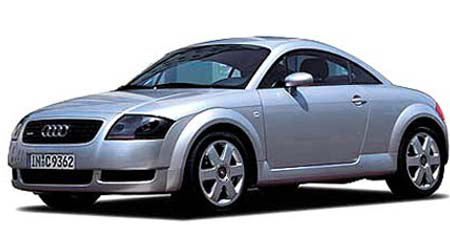

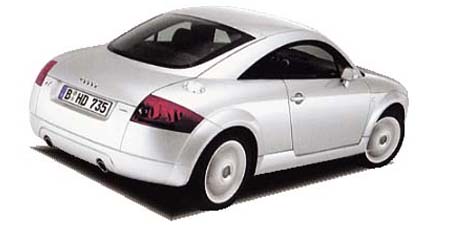

AUDI TT COUPE 1.8T QUATTRO

AUDI TT COUPE

8NAPXF · 1.8T QUATTRO

Description

Modification: 1.8T QUATTRO
Chassis ID: 8NAPXF
Dates releasing: 1999.10~
Base price, ¥: GF-8NAPXF
Body size: 4060x1765x1340
Interior (LxWxH): ----x----x----
Wheelbase: 2430
Track f/r: 1530mm/1500mm
Full weight, kg: 1450
Body type: Coupe
Doors / seats: 3 door / 4

Safe equipment

Driver's air bag: ✓
Front passenger air bag: ✓
Side airbags: ✓
ABS: ✓
TRC: ✓
Belts w/ tensioner: ✓
Belts w/ effort limiter: ✓
Belts w/ holding: ✓
Child-seat fixation: ✓
Safety planks: ✓
Brake assist: ×
Energy-absorbing body: ×
EBD: ×
Anti-theft device: ×
Additional equipment: ×

Comfort

Air conditioner: Full Auto
Power window: ✓
Central switch: ✓
Steering column length: ✓
Steering column height: ✓
Cruise control: ×
Leather steering wheel: ✓
Leather seats: —
Power front seat: ×
Power rear seat: ×
Wood panel: ×
Sunroof: ×
Alloy wheels: 17 inches standard
Folding seat: split
Glass w/ UV filter: ×
Toned glasses: ×

Engine

Model: APX
Type: inline 4 cylinder DOHC 20-valves IC-turbo
Bore x stroke, mm: 81.0x86.4
Engine size, cc: 1780
Compression ratio: 8.9
Fuel injection: 電子
Max power, hp/rpm: 225ps(165kW)/5900rpm
Max torque, Nm/rpm: 28.6kg m(280N m)/2200~5500rpm
Supercharger: IC turbo
Fuel tank, liters: 62 l
Fuel: Unleaded premium gasoline
Fuel consumption, l/100km: 9.2

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: スタビライザー付 McPherson Strut
Rear suspension: スタビライザー付トレーリングアー
Front brake: Ventilated disk
Rear brake: Ventilated disk
Front wheel: 225/45R17
Rear wheel: 225/45R17
Min turn diameter, m: 5.0

Gearbox

Number of stages: 6MT
Drive: Full-time 4WD
LSD: ----

Exterior equipment

Front fog lights: ✓
Rear fog lights: ✓
Xenon: ✓
Extra front lights: ×
Spoilers (f / r): × / ×
Wiper: ×

Navigation & sound

Navigation: ×
Navigation device: It is not
Audio: AM/FM radio with CS player
CD player: ×

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
—	3.416	2.105	1.428	1.088	1.096	0.911	—	—	4.107

Available colors

black / Brilliant BlackwhitegreenMaroon (brown)OliveNavy blue / Other Navy bluePurpleAshesYellowYellow-greenBlack (P)MagentaSilver / Other SilverRedBlueDark cyanPearlGold
