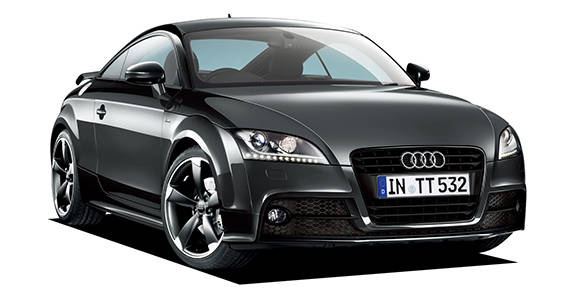

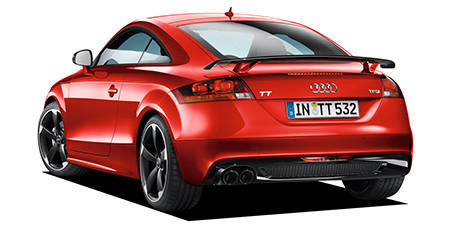

AUDI TT COUPE 1.8TFSI S-LINE COMPETITION

AUDI TT COUPE

8JCDA · 1.8TFSI S-LINE COMPETITION

Description

Modification: 1.8TFSI S-LINE COMPETITION
Chassis ID: 8JCDA
Dates releasing: 2014.2~
Base price, ¥: ABA-8JCDA
Body size: 4200x1840x1380
Interior (LxWxH): ----x----x----
Wheelbase: 2465
Track f/r: 1560mm/1550mm
Full weight, kg: 1320
Body type: Coupe
Doors / seats: 3 door / 4

Safe equipment

Driver's air bag: ✓
Front passenger air bag: ✓
Side airbags: ✓
ABS: ✓
TRC: ✓
Belts w/ tensioner: ✓
Belts w/ effort limiter: ✓
Belts w/ holding: ✓
Child-seat fixation: ×
Safety planks: ✓
Brake assist: ✓
Energy-absorbing body: ×
EBD: ✓
Anti-theft device: ✓
Additional equipment: ESC(エレクトロニックスタビリゼーションコントロール)

Comfort

Air conditioner: Full Auto
Power window: ✓
Central switch: ✓
Steering column length: ✓
Steering column height: ✓
Cruise control: ×
Leather steering wheel: ✓
Leather seats: —
Power front seat: ×
Power rear seat: ×
Wood panel: ×
Sunroof: ×
Alloy wheels: 19 inches standard
Folding seat: split
Glass w/ UV filter: ✓
Toned glasses: ×

Engine

Model: CDA
Type: inline 4 cylinder DOHC 16-valves IC-turbo
Bore x stroke, mm: 82.5x84.1
Engine size, cc: 1798
Compression ratio: 9.8
Fuel injection: 電子
Max power, hp/rpm: 160ps(118kW)/4500~6200rpm
Max torque, Nm/rpm: 25.5kg m(250N m)/1500~4500rpm
Supercharger: IC turbo
Fuel tank, liters: 55 l
Fuel: Unleaded premium gasoline
Fuel consumption, l/100km: 7

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: McPherson Strut
Rear suspension: 4リンクサスペンション
Front brake: Ventilated disk
Rear brake: disk
Front wheel: 255/35R19
Rear wheel: 255/35R19
Min turn diameter, m: 5.2

Gearbox

Number of stages: 7AT
Drive: FF
LSD: ----

Exterior equipment

Front fog lights: ✓
Rear fog lights: ✓
Xenon: ✓
Extra front lights: ×
Spoilers (f / r): × / ✓
Wiper: ×

Navigation & sound

Navigation: ✓
Navigation device: メモ
Audio: AM/FMラジオ
CD player: 単装

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
—	3.764	2.272	1.531	1.121	1.176	0.951	0.795	—	4.169

Available colors

blackwhite / Glacier White MetallicgreenMaroon (brown)OliveNavy bluePurpleAshes / Other AshesYellowYellow-greenBlack (P)MagentaSilverRed / Other RedBlueDark cyanPearlGold / Other Gold
