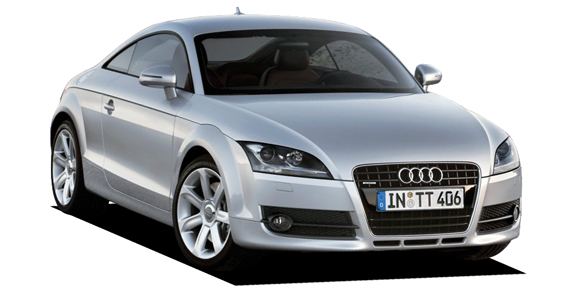

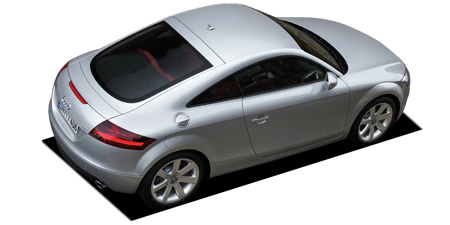

AUDI TT COUPE 2.0TFSI

AUDI TT COUPE

8JBWA · 2.0TFSI

Description

Modification: 2.0TFSI
Chassis ID: 8JBWA
Dates releasing: 2009.1~
Base price, ¥: ABA-8JBWA
Body size: 4180x1840x1390
Interior (LxWxH): ----x----x----
Wheelbase: 2465
Track f/r: 1570mm/1560mm
Full weight, kg: 1340
Body type: Coupe
Doors / seats: 3 door / 4

Safe equipment

Driver's air bag: ✓
Front passenger air bag: ✓
Side airbags: ✓
ABS: ✓
TRC: ✓
Belts w/ tensioner: ✓
Belts w/ effort limiter: ✓
Belts w/ holding: ✓
Child-seat fixation: ×
Safety planks: ✓
Brake assist: ✓
Energy-absorbing body: ×
EBD: ✓
Anti-theft device: ✓
Additional equipment: ESP(エレクトロ二ックスタビリゼーション PRO グラム) EDS(エレクトロニックデ&#1245

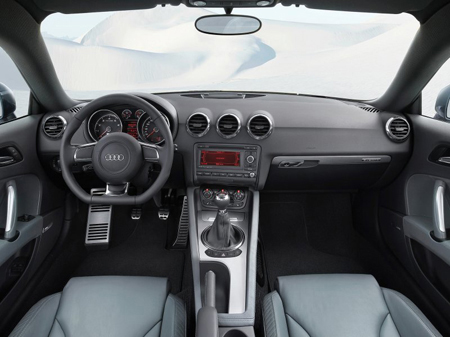

Comfort

Air conditioner: Full Auto
Power window: ✓
Central switch: ✓
Steering column length: ✓
Steering column height: ✓
Cruise control: ◯
Leather steering wheel: ✓
Leather seats: —
Power front seat: ◯
Power rear seat: ×
Wood panel: ×
Sunroof: ×

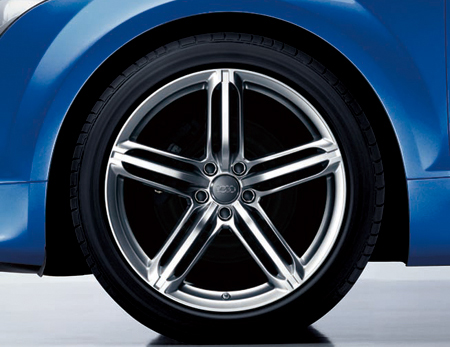

Alloy wheels: 16 inches standard
Folding seat: split
Glass w/ UV filter: ×
Toned glasses: ×

Engine

Model: BWA
Type: inline 4 cylinder DOHC 16-valves IC-turbo
Bore x stroke, mm: 82.5x92.8
Engine size, cc: 1984
Compression ratio: 10.3
Fuel injection: 電子
Max power, hp/rpm: 200ps(147kW)/5100~6000rpm
Max torque, Nm/rpm: 28.5kg m(280N m)/1800~5000rpm
Supercharger: IC turbo
Fuel tank, liters: 55 l
Fuel: Unleaded premium gasoline
Fuel consumption, l/100km: 8.3

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: McPherson Strut
Rear suspension: 4リンクサスペンション
Front brake: Ventilated disk
Rear brake: disk
Front wheel: 225/55R16
Rear wheel: 225/55R16
Min turn diameter, m: 5.2

Gearbox

Number of stages: 6AT
Drive: FF
LSD: ----

Exterior equipment

Front fog lights: ✓
Rear fog lights: ✓
Xenon: ◯
Extra front lights: ×
Spoilers (f / r): ◯ / ✓
Wiper: ×

Navigation & sound

Navigation: ✓
Navigation device: HDD
Audio: It is not
CD player: ×

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
—	3.461	2.150	1.464	1.078	1.093	0.921	—	—	3.989

Available colors

black / Other blackwhite / Other whitegreenMaroon (brown)OliveNavy blue / Other Navy bluePurpleAshes / Other AshesYellowYellow-greenBlack (P)MagentaSilver / Other SilverRed / Other RedBlue / Other BlueDark cyan / Other Dark cyanPearlGold / Other Gold
