JDM Vehicle Catalog

Vehicle Specs

AUDI TT COUPE S LINE COMPETITION

AUDI TT COUPE

FVCHHF · S LINE COMPETITION

Description

Modification: S LINE COMPETITION
Chassis ID: FVCHHF
Dates releasing: 2020.6~
Base price, ¥: ABA-FVCHHF
Body size: 4200x1830x1370
Interior (LxWxH): ----x----x----
Wheelbase: 2505
Track f/r: 1565mm/1545mm
Full weight, kg: 1420
Body type: Coupe
Doors / seats: 3 door / 4

Safe equipment

Driver's air bag: ✓
Front passenger air bag: ✓
Side airbags: ✓
ABS: ✓
TRC: ✓
Belts w/ tensioner: ✓
Belts w/ effort limiter: ✓
Belts w/ holding: ✓
Child-seat fixation: ×
Safety planks: ✓
Brake assist: ✓
Energy-absorbing body: ×
EBD: ✓
Anti-theft device: ✓
Additional equipment: ESC(エレクトロニックスタビリゼーションコントロール)

Comfort

Air conditioner: Full Auto
Power window: ✓
Central switch: ✓
Steering column length: ✓
Steering column height: ✓
Cruise control: ×
Leather steering wheel: ✓
Leather seats: —
Power front seat: ✓
Power rear seat: ×
Wood panel: ×
Sunroof: ×

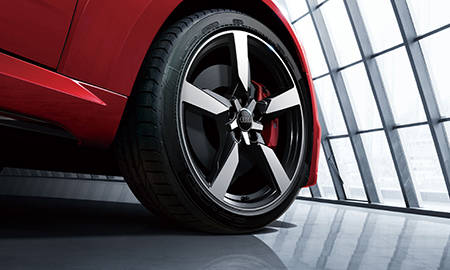

Alloy wheels: 19 inches standard
Folding seat: ×
Glass w/ UV filter: ✓
Toned glasses: ✓

Engine

Model: CHH
Type: inline 4 cylinder DOHC 16-valves IC-turbo
Bore x stroke, mm: 82.5x92.8
Engine size, cc: 1984
Compression ratio: 9.6
Fuel injection: 電子
Max power, hp/rpm: 230ps(169kW)/4500~6200rpm
Max torque, Nm/rpm: 37.7kg m(370N m)/1600~4300rpm
Supercharger: IC turbo
Fuel tank, liters: 55 l
Fuel: Unleaded premium gasoline
Fuel consumption, l/100km: 8

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: McPherson Strut
Rear suspension: ウィッシュボーン
Front brake: Ventilated disk
Rear brake: disk
Front wheel: 245/35R19
Rear wheel: 245/35R19
Min turn diameter, m: 4.9

Gearbox

Number of stages: 6AT
Drive: Full-time 4WD
LSD: ----

Exterior equipment

Front fog lights: ✓
Rear fog lights: ×
Xenon: ×
Extra front lights: ×

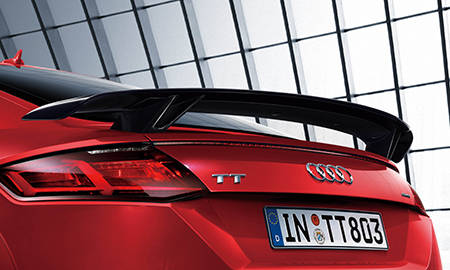

Spoilers (f / r): ✓ / ✓
Wiper: ×

Navigation & sound

Navigation: ✓
Navigation device: メモ
Audio: AM/FMラジオ
CD player: 単装

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
—	2.933	1.791	1.193	0.837	0.861	0.697	—	—	3.352

Available colors

blackwhite / Glacier White MetallicgreenMaroon (brown)OliveNavy bluePurpleAshesYellowYellow-greenBlack (P)MagentaSilverRed / Other RedBlue / Other BlueDark cyanPearlGold
