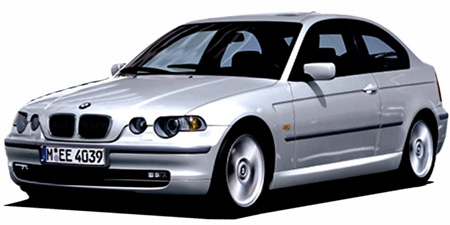

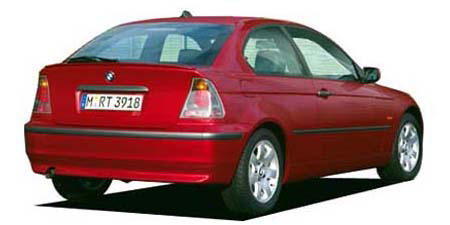

BMW 3 SERIES 316TI

BMW 3 SERIES

AT18 · 316TI

Description

Modification: 316TI
Chassis ID: AT18
Dates releasing: 2003.4~
Base price, ¥: GH-AT18
Body size: 4265x1750x1430
Interior (LxWxH): ----x----x----
Wheelbase: 2725
Track f/r: 1485mm/1495mm
Full weight, kg: 1370
Body type: Hatch
Doors / seats: 3 door / 5

Safe equipment

Driver's air bag: ✓
Front passenger air bag: ✓
Side airbags: ✓
ABS: ✓
TRC: ✓
Belts w/ tensioner: ✓
Belts w/ effort limiter: ✓
Belts w/ holding: ✓
Child-seat fixation: ×
Safety planks: ✓
Brake assist: ×
Energy-absorbing body: ×
EBD: ×
Anti-theft device: ✓
Additional equipment: ASC+T(オートマチックスタビリティコントロール+トラクションコントロー&#1252

Comfort

Air conditioner: Manual
Power window: ✓
Central switch: ✓
Steering column length: ✓
Steering column height: ✓
Cruise control: ◯
Leather steering wheel: ◯
Leather seats: —
Power front seat: ◯
Power rear seat: ×
Wood panel: ×
Sunroof: ◯
Alloy wheels: Option settings YES
Folding seat: split
Glass w/ UV filter: ×
Toned glasses: ×

Engine

Model: N42B18A
Type: inline 4 cylinder DOHC 16-valves
Bore x stroke, mm: ----x----
Engine size, cc: 1796
Compression ratio: 10.2
Fuel injection: デジタルモーターエレクトロニク&#1247
Max power, hp/rpm: 115ps(85kW)/5500rpm
Max torque, Nm/rpm: 17.9kg m(175N m)/3750rpm
Supercharger: ×
Fuel tank, liters: 63 l
Fuel: Unleaded premium gasoline
Fuel consumption, l/100km: 8.8

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: シングル JOIN トスプリング Strut type 、 Coil spring 、
Rear suspension: セントラルアーム type 、 Coil spring 、スタビ&#12
Front brake: Ventilated disk
Rear brake: disk
Front wheel: 195/65R15
Rear wheel: 195/65R15
Min turn diameter, m: 4.9

Gearbox

Number of stages: 5AT
Drive: FR
LSD: ----

Exterior equipment

Front fog lights: ✓
Rear fog lights: ✓
Xenon: ◯
Extra front lights: ×
Spoilers (f / r): ◯ / ◯
Wiper: ✓

Navigation & sound

Navigation: ◯
Navigation device: DVD
Audio: AM/FM radio with MD player
CD player: ×

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
—	3.419	2.215	1.600	1.000	0.751	—	—	—	3.028

Available colors

black / Other blackwhite / Other whitegreenMaroon (brown)Olive / Other OliveNavy bluePurpleAshes / Other AshesYellowYellow-green / Other Yellow-greenBlack (P)MagentaSilver / Other SilverRed / Other RedBlue / Other BlueDark cyanPearlGold / Other Gold
