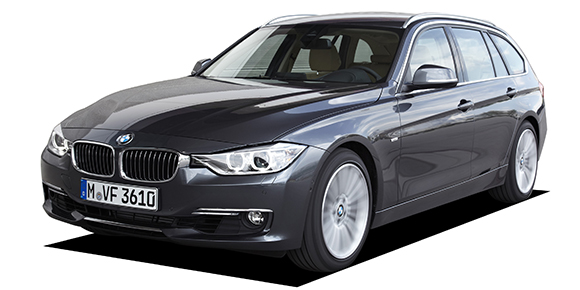

BMW 3 SERIES 320D TOURING

BMW 3 SERIES

3D20 · 320D TOURING

Description

Modification: 320D TOURING
Chassis ID: 3D20
Dates releasing: 2014.8~
Base price, ¥: LDA-3D20
Body size: 4625x1800x1460
Interior (LxWxH): ----x----x----
Wheelbase: 2810
Track f/r: 1530mm/1570mm
Full weight, kg: 1620
Body type: Wagon
Doors / seats: 5 door / 5

Safe equipment

Driver's air bag: ✓
Front passenger air bag: ✓
Side airbags: ✓
ABS: ✓
TRC: ✓
Belts w/ tensioner: ✓
Belts w/ effort limiter: ✓
Belts w/ holding: ✓
Child-seat fixation: ×
Safety planks: ✓
Brake assist: ×
Energy-absorbing body: ×
EBD: ×
Anti-theft device: ✓
Additional equipment: CBC/コーナリングブレーキコントロール DSC/ダイナミックスタビリティコン&#

Comfort

Air conditioner: Dual air conditioning
Power window: ✓
Central switch: ✓
Steering column length: ✓
Steering column height: ✓
Cruise control: ✓
Leather steering wheel: ✓
Leather seats: —
Power front seat: ✓
Power rear seat: ×
Wood panel: ×
Sunroof: ◯
Alloy wheels: 16 inches standard
Folding seat: split
Glass w/ UV filter: ◯
Toned glasses: ×

Engine

Model: N47D20C
Type: inline 4 cylinder DOHCturbo (Diesel)
Bore x stroke, mm: ----x----
Engine size, cc: 1995
Compression ratio: 16.5
Fuel injection: デジタルディーゼルエレクトロニ&#1246
Max power, hp/rpm: 184ps(135kW)/4000rpm
Max torque, Nm/rpm: 38.7kg m(380N m)/1750~2750rpm
Supercharger: Turbo
Fuel tank, liters: 57 l
Fuel: Diesel
Fuel consumption, l/100km: 5.2

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: ダブル JOIN トスプリング Strut type 、コイル &#12
Rear suspension: 5-link 、コイルスプリング、スタビライ
Front brake: Ventilated disk
Rear brake: Ventilated disk
Front wheel: 205/60R16
Rear wheel: 205/60R16
Min turn diameter, m: 5.4

Gearbox

Number of stages: 8AT
Drive: FR
LSD: ----

Exterior equipment

Front fog lights: ✓
Rear fog lights: ✓
Xenon: ✓
Extra front lights: ×
Spoilers (f / r): × / ×
Wiper: ×

Navigation & sound

Navigation: ✓
Navigation device: HDD
Audio: AM/FMラジオ
CD player: 単装

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
—	4.714	3.143	2.106	1.667	1.285	1.000	0.839	0.667	3.295

Available colors

black / BLACK II / Black Sapphirewhite / Alpin White III / Other whitegreenMaroon (brown) / Other Maroon (brown)OliveNavy blue / Other Navy bluePurpleAshes / Other AshesYellowYellow-greenBlack (P) / Other Black (P)MagentaSilver / Other SilverRed / Other RedBlueDark cyanPearlGold
