BMW 3 SERIES 320i

BMW 3 SERIES

WA20 · 320i

Description

Modification: 320i
Chassis ID: WA20
Dates releasing: 2007.5~
Base price, ¥: ABA-WA20
Body size: 4580x1780x1395
Interior (LxWxH): ----x----x----
Wheelbase: 2760
Track f/r: 1500mm/1515mm
Full weight, kg: 1490
Body type: Coupe
Doors / seats: 2 door / 4

Safe equipment

Driver's air bag: ✓
Front passenger air bag: ✓
Side airbags: ✓
ABS: ✓
TRC: ✓
Belts w/ tensioner: ✓
Belts w/ effort limiter: ✓
Belts w/ holding: ✓
Child-seat fixation: ×
Safety planks: ✓
Brake assist: ×
Energy-absorbing body: ×
EBD: ×
Anti-theft device: ✓
Additional equipment: DSC/ダイナミックスタビリティコントロール CBC/コーナリングブレーキコン&#

Comfort

Air conditioner: Dual air conditioning
Power window: ✓
Central switch: ✓
Steering column length: ✓
Steering column height: ✓
Cruise control: ◯
Leather steering wheel: ✓
Leather seats: —
Power front seat: ✓
Power rear seat: ×
Wood panel: ✓
Sunroof: ◯
Alloy wheels: 17 inches standard
Folding seat: split
Glass w/ UV filter: ×
Toned glasses: ×

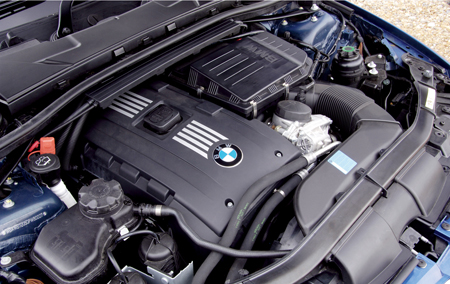

Engine

Model: N46B20B
Type: inline 4 cylinder DOHC
Bore x stroke, mm: 84.0x90.0
Engine size, cc: 1995
Compression ratio: 10.5
Fuel injection: デジタルモーターエレクトロニク&#1247
Max power, hp/rpm: 156ps(115kW)/6400rpm
Max torque, Nm/rpm: 20.4kg m(200N m)/3600rpm
Supercharger: ×
Fuel tank, liters: 60 l
Fuel: Unleaded premium gasoline
Fuel consumption, l/100km: 8.3

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: ダブル JOIN トスプリング Strut type 、 Coil spring 、ス
Rear suspension: 5-link 、コイルスプリング、スタビライ
Front brake: Ventilated disk
Rear brake: Ventilated disk
Front wheel: 225/45R17
Rear wheel: 225/45R17
Min turn diameter, m: 5.3

Gearbox

Number of stages: 6AT
Drive: FR
LSD: ----

Exterior equipment

Front fog lights: ✓
Rear fog lights: ✓
Xenon: ✓
Extra front lights: ×
Spoilers (f / r): × / ×
Wiper: ×

Navigation & sound

Navigation: ◯
Navigation device: HDD
Audio: AM/FMラジオ
CD player: 連装

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
—	4.065	2.371	1.551	1.157	0.853	0.674	—	—	3.200

Available colors

black / Black II (solid color) / Black sapphire (metallic)white / Alpin White III (Solid Color)green / Other greenMaroon (brown) / Other Maroon (brown)OliveNavy blue / Other Navy bluePurpleAshes / Other AshesYellowYellow-greenBlack (P) / Other Black (P)MagentaSilver / Other SilverRed / Other RedBlue / Other BlueDark cyanPearlGold / Other Gold
