Vehicle Specs

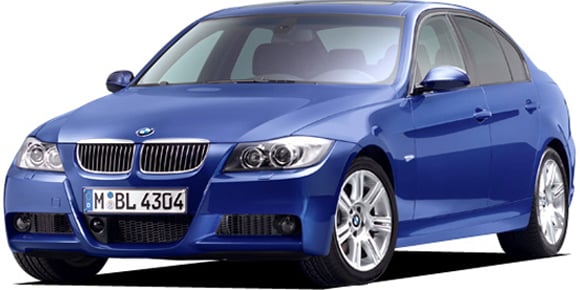

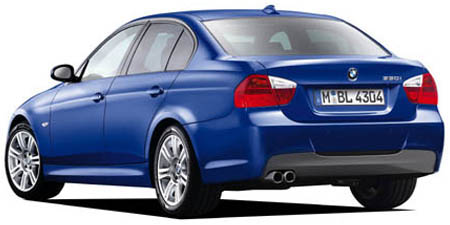

BMW 3 SERIES 323i

BMW 3 SERIES

VB23 · 323i

Description

Modification: 323i
Chassis ID: VB23
Dates releasing: 2007.5~
Base price, ¥: ABA-VB23
Body size: 4525x1815x1425
Interior (LxWxH): ----x----x----
Wheelbase: 2760
Track f/r: 1500mm/1515mm
Full weight, kg: 1510
Body type: Sedan
Doors / seats: 4 door / 5

Safe equipment

Driver's air bag: ✓
Front passenger air bag: ✓
Side airbags: ✓
ABS: ✓
TRC: ✓
Belts w/ tensioner: ✓
Belts w/ effort limiter: ✓
Belts w/ holding: ✓
Child-seat fixation: ×
Safety planks: ✓
Brake assist: ×
Energy-absorbing body: ×
EBD: ×
Anti-theft device: ✓
Additional equipment: CBC/コーナリングブレーキコントロール DSC/ダイナミックスタビリティコン&#

Comfort

Air conditioner: Full Auto
Power window: ✓
Central switch: ✓
Steering column length: ✓
Steering column height: ✓
Cruise control: ◯
Leather steering wheel: ✓
Leather seats: —
Power front seat: ✓
Power rear seat: ×
Wood panel: ✓
Sunroof: ◯
Alloy wheels: 16 inches standard
Folding seat: split
Glass w/ UV filter: ×
Toned glasses: ×

Engine

Model: N52B25A
Type: inline 6 cylinder DOHC
Bore x stroke, mm: ----x----
Engine size, cc: 2496
Compression ratio: 11.0
Fuel injection: デジタルモーターエレクトロニク&#1247
Max power, hp/rpm: 190ps(140kW)/5900rpm
Max torque, Nm/rpm: 23.5kg m(230N m)/3500~5000rpm
Supercharger: ×
Fuel tank, liters: 60 l
Fuel: Unleaded premium gasoline
Fuel consumption, l/100km: 10.1

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: ダブル JOIN トスプリング Strut type 、コイル &#12
Rear suspension: 5-link 、コイルスプリング、スタビライ
Front brake: Ventilated disk
Rear brake: Ventilated disk
Front wheel: 225/50R16
Rear wheel: 225/50R16
Min turn diameter, m: 5.3

Gearbox

Number of stages: 6AT
Drive: FR
LSD: ----

Exterior equipment

Front fog lights: ✓
Rear fog lights: ✓
Xenon: ✓
Extra front lights: ×
Spoilers (f / r): ◯ / ×
Wiper: ×

Navigation & sound

Navigation: ◯
Navigation device: HDD
Audio: AM/FMラジオ
CD player: 連装

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
—	4.171	2.340	1.521	1.143	0.867	0.691	—	—	3.403

Available colors

black / Black II (solid color) / Black sapphire (metallic)white / Alpin White III (Solid Color)green / Other greenMaroon (brown) / Other Maroon (brown)OliveNavy blue / Other Navy bluePurpleAshes / Other AshesYellowYellow-greenBlack (P)MagentaSilver / Other SilverRed / Other RedBlue / Other BlueDark cyanPearlGold / Other Gold
