JDM Vehicle Catalog

Vehicle Specs

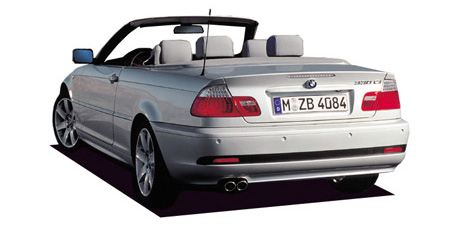

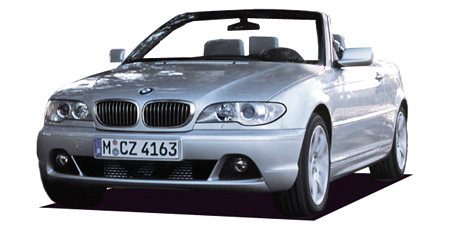

BMW 3 SERIES 330Ci CABRIOLET

BMW 3 SERIES

AV30 · 330Ci CABRIOLET

Description

Modification: 330Ci CABRIOLET
Chassis ID: AV30
Dates releasing: 2005.9~
Base price, ¥: GH-AV30
Body size: 4490x1755x1370
Interior (LxWxH): ----x----x----
Wheelbase: 2725
Track f/r: 1470mm/1480mm
Full weight, kg: 1680
Body type: Open
Doors / seats: 2 door / 4

Safe equipment

Driver's air bag: ✓
Front passenger air bag: ✓
Side airbags: ✓
ABS: ✓
TRC: ✓
Belts w/ tensioner: ✓
Belts w/ effort limiter: ✓
Belts w/ holding: ✓
Child-seat fixation: ×
Safety planks: ✓
Brake assist: ×
Energy-absorbing body: ×
EBD: ×
Anti-theft device: ✓
Additional equipment: CBC/コーナリングブレーキコントロール DSC/ダイナミックスタビリティコン&#

Comfort

Air conditioner: Full Auto
Power window: ✓
Central switch: ✓
Steering column length: ✓
Steering column height: ✓
Cruise control: ✓
Leather steering wheel: ✓
Leather seats: —
Power front seat: ✓
Power rear seat: ×
Wood panel: ✓
Sunroof: ×
Alloy wheels: 17 inches standard
Folding seat: split
Glass w/ UV filter: ×
Toned glasses: ×

Engine

Model: 30 6S
Type: inline 6 cylinder DOHC 24-valves
Bore x stroke, mm: ----x----
Engine size, cc: 2979
Compression ratio: 10.2
Fuel injection: 電子制御燃料噴射
Max power, hp/rpm: 231ps(170kW)/5900rpm
Max torque, Nm/rpm: 30.6kg m(300N m)/3500rpm
Supercharger: ×
Fuel tank, liters: 63 l
Fuel: Unleaded premium gasoline
Fuel consumption, l/100km: 10.9

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: シングル JOIN トスプリング Strut
Rear suspension: セントラルアーム
Front brake: Ventilated disk
Rear brake: Ventilated disk
Front wheel: 225/45R17
Rear wheel: 225/45R17
Min turn diameter, m: 4.9

Gearbox

Number of stages: 5AT
Drive: FR
LSD: ----

Exterior equipment

Front fog lights: ✓
Rear fog lights: ✓
Xenon: ✓
Extra front lights: ×
Spoilers (f / r): ◯ / ◯
Wiper: ×

Navigation & sound

Navigation: ✓
Navigation device: DVD
Audio: AM/FM radio with MD player
CD player: ×

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
—	3.665	1.999	1.407	1.000	0.742	—	—	—	4.100

Available colors

black / Black II (solid color) / Black sapphire (metallic)white / Alpin White III (Solid Color)green / Other greenMaroon (brown) / Other Maroon (brown)OliveNavy blue / Other Navy bluePurpleAshes / Other AshesYellowYellow-greenBlack (P)MagentaSilver / Other SilverRed / Other RedBlue / Other BlueDark cyanPearlGold / Other Gold
