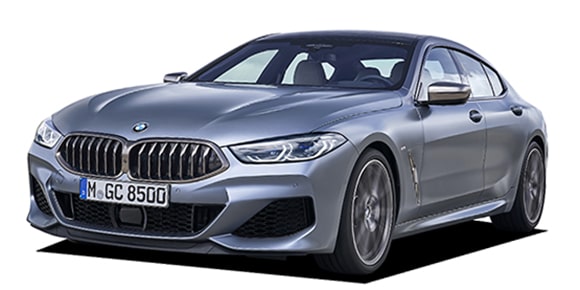

BMW 8 SERIES 840D X DRIVE GRAN COUPE

BMW 8 SERIES

GW30 · 840D X DRIVE GRAN COUPE

Description

Modification: 840D X DRIVE GRAN COUPE
Chassis ID: GW30
Dates releasing: 2020.4~
Base price, ¥: 3DA-GW30
Body size: 5085x1930x1400
Interior (LxWxH): ----x----x----
Wheelbase: 3025
Track f/r: 1620mm/1670mm
Full weight, kg: 1980
Body type: Sedan
Doors / seats: 4 door / 5

Safe equipment

Driver's air bag: ✓
Front passenger air bag: ✓
Side airbags: ✓
ABS: ✓
TRC: ✓
Belts w/ tensioner: ✓
Belts w/ effort limiter: ✓
Belts w/ holding: ✓
Child-seat fixation: ×
Safety planks: ✓
Brake assist: ×
Energy-absorbing body: ×
EBD: ×
Anti-theft device: ✓
Additional equipment: DSC/ダイナミックスタビリティコントロール(拡張機能付)

Comfort

Air conditioner: Full Auto
Power window: ✓
Central switch: ✓
Steering column length: ✓
Steering column height: ✓
Cruise control: ✓
Leather steering wheel: ✓
Leather seats: —
Power front seat: ×
Power rear seat: ×
Wood panel: ×
Sunroof: ×
Alloy wheels: 18 inches standard
Folding seat: split
Glass w/ UV filter: ×
Toned glasses: ×

Engine

Model: B57D30B
Type: inline 6 cylinder DOHCturbo (Diesel)
Bore x stroke, mm: ----x----
Engine size, cc: 2992
Compression ratio: ----
Fuel injection: デジタルディーゼルエレクトロニ&#1246
Max power, hp/rpm: 320ps(235kW)/4400rpm
Max torque, Nm/rpm: 69.3kg m(680N m)/1750~2250rpm
Supercharger: Turbo
Fuel tank, liters: 66 l
Fuel: Diesel
Fuel consumption, l/100km: 7

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: ダブルウィッシュボーン type Coil spring
Rear suspension: Multi-link Coil spring
Front brake: Ventilated disk
Rear brake: Ventilated disk
Front wheel: 245/45R18
Rear wheel: 275/40R18
Min turn diameter, m: 5.5

Gearbox

Number of stages: 8AT
Drive: Full-time 4WD
LSD: ----

Exterior equipment

Front fog lights: ×
Rear fog lights: ✓
Xenon: ×
Extra front lights: ×
Spoilers (f / r): × / ×
Wiper: ×

Navigation & sound

Navigation: ✓
Navigation device: HDD
Audio: AM/FMラジオ
CD player: ×

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
—	5.500	3.520	2.200	1.720	1.317	1.000	0.823	0.640	3.993

Available colors

black / Black sapphire (metallic)white / Other white / mineral white (metallic color)greenMaroon (brown)OliveNavy bluePurpleAshes / Other AshesYellowYellow-greenBlack (P)MagentaSilverRedBlue / Other BlueDark cyanPearlGold / Other Gold
