JDM Vehicle Catalog

Vehicle Specs

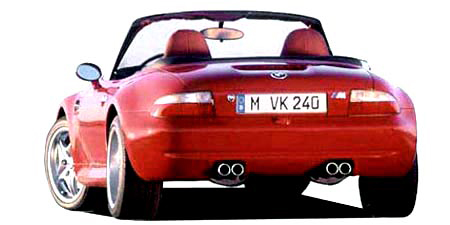

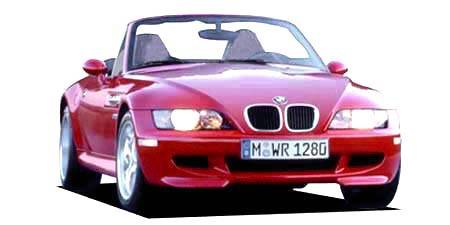

BMW M ROADSTER BASE GRADE

BMW M ROADSTER

CK32 · BASE GRADE

Description

Modification: BASE GRADE
Chassis ID: CK32
Dates releasing: 2001.1~
Base price, ¥: GF-CK32
Body size: 4035x1740x1265
Interior (LxWxH): ----x----x----
Wheelbase: 2460
Track f/r: 1420mm/1490mm
Full weight, kg: 1410
Body type: Open
Doors / seats: 2 door / 2

Safe equipment

Driver's air bag: ✓
Front passenger air bag: ✓
Side airbags: ✓
ABS: ✓
TRC: ×
Belts w/ tensioner: ✓
Belts w/ effort limiter: ×
Belts w/ holding: ×
Child-seat fixation: ×
Safety planks: ✓
Brake assist: ×
Energy-absorbing body: ×
EBD: ×
Anti-theft device: ×
Additional equipment: ×

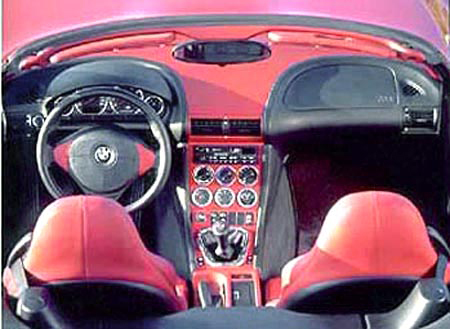

Comfort

Air conditioner: Manual
Power window: ✓
Central switch: ✓
Steering column length: ×
Steering column height: ×
Cruise control: ×
Leather steering wheel: ×
Leather seats: —
Power front seat: ×
Power rear seat: ×
Wood panel: ×
Sunroof: ×
Alloy wheels: 17 inches standard
Folding seat: ×
Glass w/ UV filter: ×
Toned glasses: ×

Engine

Model: 32 6S
Type: inline 6 cylinder DOHC
Bore x stroke, mm: 86.4x91.0
Engine size, cc: 3201
Compression ratio: 11.3
Fuel injection: デジタルモーターエレクトロニク&#1247
Max power, hp/rpm: 321ps(236kW)/7400rpm
Max torque, Nm/rpm: 35.7kg m(350.1N m)/3250rpm
Supercharger: ×
Fuel tank, liters: 51 l
Fuel: Unleaded premium gasoline
Fuel consumption, l/100km: 0

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: シングル JOIN トスプリング Strut type 、 Coil spring 、
Rear suspension: セミトレーリング type 、 Coil spring 、スタビ&#125
Front brake: Ventilated disk
Rear brake: Ventilated disk
Front wheel: 225/45R17
Rear wheel: 245/40R17
Min turn diameter, m: 4.7

Gearbox

Number of stages: 5MT
Drive: FR
LSD: ✓

Exterior equipment

Front fog lights: ×
Rear fog lights: ✓
Xenon: ×
Extra front lights: ×
Spoilers (f / r): × / ×
Wiper: ×

Navigation & sound

Navigation: ×
Navigation device: It is not
Audio: AM/FM radio with CS player
CD player: ×

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
—	—	—	—	—	—	—	—	—	----

Available colors

blackwhitegreenMaroon (brown)OliveNavy bluePurpleAshesYellowYellow-greenBlack (P)MagentaSilverRedBlueDark cyanPearlGold
