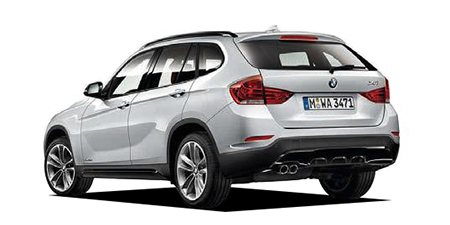

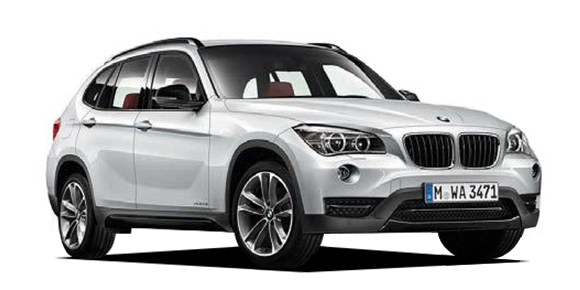

BMW X1 S DRIVE 20I SPORT

BMW X1

VL20 · S DRIVE 20I SPORT

Description

Modification: S DRIVE 20I SPORT
Chassis ID: VL20
Dates releasing: 2012.9~
Base price, ¥: DBA-VL20
Body size: 4485x1800x1545
Interior (LxWxH): ----x----x----
Wheelbase: 2760
Track f/r: 1510mm/1540mm
Full weight, kg: 1600
Body type: SUV
Doors / seats: 5 door / 5

Safe equipment

Driver's air bag: ✓
Front passenger air bag: ✓
Side airbags: ✓
ABS: ✓
TRC: ✓
Belts w/ tensioner: ✓
Belts w/ effort limiter: ✓
Belts w/ holding: ✓
Child-seat fixation: ×
Safety planks: ✓
Brake assist: ✓
Energy-absorbing body: ×
EBD: ×
Anti-theft device: ✓
Additional equipment: DSC(ダイナミックスタビリティコントロール) CBC(コーナリングブレーキコン&

Comfort

Air conditioner: Full Auto
Power window: ✓
Central switch: ✓
Steering column length: ✓
Steering column height: ✓
Cruise control: ◯
Leather steering wheel: ✓
Leather seats: —
Power front seat: ◯
Power rear seat: ×
Wood panel: ×

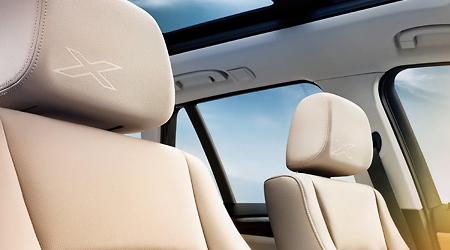

Sunroof: ◯

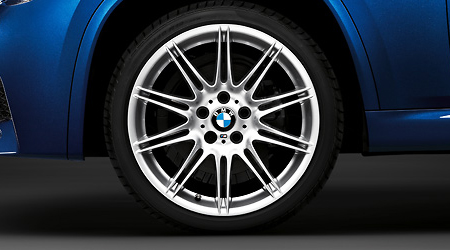

Alloy wheels: 18 inches standard
Folding seat: split
Glass w/ UV filter: ×
Toned glasses: ×

Engine

Model: N20B20A
Type: inline 4 cylinder DOHCturbo
Bore x stroke, mm: ----x----
Engine size, cc: 1997
Compression ratio: 10.0
Fuel injection: デジタルモーターエレクトロニク&#1247
Max power, hp/rpm: 184ps(135kW)/5000rpm
Max torque, Nm/rpm: 27.5kg m(270N m)/1250~4500rpm
Supercharger: Turbo
Fuel tank, liters: 60 l
Fuel: Unleaded premium gasoline
Fuel consumption, l/100km: 6.7

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: ダブル JOIN トスプリング Strut type 、コイル &#12
Rear suspension: 5-link 、コイルスプリングスタビライ&#12470
Front brake: Ventilated disk
Rear brake: Ventilated disk
Front wheel: 225/45R18
Rear wheel: 225/45R18
Min turn diameter, m: 5.3

Gearbox

Number of stages: 8AT
Drive: FR
LSD: ----

Exterior equipment

Front fog lights: ✓
Rear fog lights: ✓

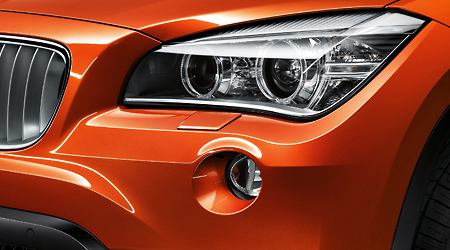

Xenon: ✓
Extra front lights: ×
Spoilers (f / r): × / ×
Wiper: ✓

Navigation & sound

Navigation: ◯
Navigation device: HDD
Audio: AM/FMラジオ
CD player: 単装

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
—	4.714	3.143	2.106	1.667	1.285	1.000	0.839	0.667	3.295

Available colors

black / BLACK II / Black Sapphirewhite / Alpin White III / Other whitegreenMaroon (brown) / Other Maroon (brown)OliveNavy blue / Other Navy bluePurpleAshes / Other AshesYellowYellow-greenBlack (P)MagentaSilver / Other SilverRedBlueDark cyanPearlGold / Other Gold
