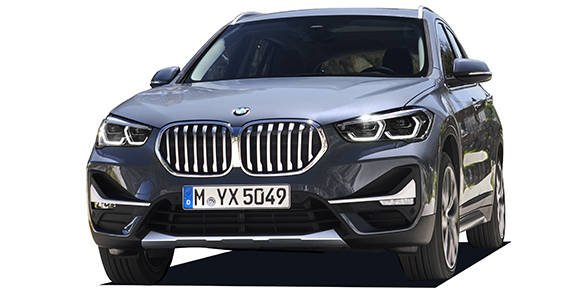

BMW X1 X DRIVE 18D

BMW X1

AD20 · X DRIVE 18D

Description

Modification: X DRIVE 18D
Chassis ID: AD20
Dates releasing: 2019.10~
Base price, ¥: 3DA-AD20
Body size: 4455x1820x1610
Interior (LxWxH): ----x----x----
Wheelbase: 2670
Track f/r: 1560mm/1560mm
Full weight, kg: 1680
Body type: SUV
Doors / seats: 5 door / 5

Safe equipment

Driver's air bag: ✓
Front passenger air bag: ✓
Side airbags: ✓
ABS: ✓
TRC: ✓
Belts w/ tensioner: ✓
Belts w/ effort limiter: ✓
Belts w/ holding: ✓
Child-seat fixation: ×
Safety planks: ✓
Brake assist: ✓
Energy-absorbing body: ×
EBD: ×
Anti-theft device: ✓
Additional equipment: DSC/ダイナミックスタビリティコントロール(拡張機能付) CBC/コーナリングブ&

Comfort

Air conditioner: Manual
Power window: ✓
Central switch: ✓
Steering column length: ✓
Steering column height: ✓
Cruise control: ◯
Leather steering wheel: ✓
Leather seats: —
Power front seat: ◯
Power rear seat: ×
Wood panel: ×

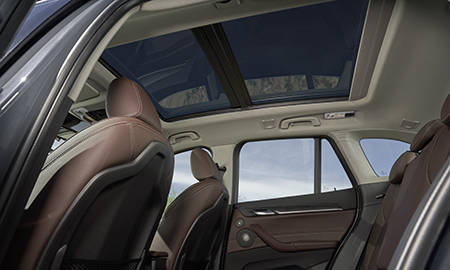

Sunroof: ◯
Alloy wheels: 17 inches standard
Folding seat: split
Glass w/ UV filter: ×
Toned glasses: ×

Engine

Model: B47C20B
Type: inline 4 cylinder DOHCturbo (Diesel)
Bore x stroke, mm: ----x----
Engine size, cc: 1995
Compression ratio: ----
Fuel injection: デジタルディーゼルエレクトロニ&#1246
Max power, hp/rpm: 150ps(110kW)/4000rpm
Max torque, Nm/rpm: 35.7kg m(350N m)/1750~2500rpm
Supercharger: Turbo
Fuel tank, liters: 61 l
Fuel: Diesel
Fuel consumption, l/100km: 5.4

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: シングル JOIN トスプリング Strut type 、コイ&#125
Rear suspension: マルチリンク type 、コイルスプリング
Front brake: Ventilated disk
Rear brake: disk
Front wheel: 225/55R17
Rear wheel: 225/55R17
Min turn diameter, m: 5.4

Gearbox

Number of stages: 8AT
Drive: Full-time 4WD
LSD: ----

Exterior equipment

Front fog lights: ✓
Rear fog lights: ×
Xenon: ×
Extra front lights: ×
Spoilers (f / r): × / ×
Wiper: ✓

Navigation & sound

Navigation: ✓
Navigation device: HDD
Audio: AM/FMラジオ
CD player: 単装

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
—	5.519	3.184	2.050	1.492	1.235	1.000	0.801	0.673	4.221

Available colors

black / Black sapphire (metallic)white / Other white / mineral white (metallic color)greenMaroon (brown)Olive / Other OliveNavy bluePurpleAshes / Other AshesYellowYellow-greenBlack (P)MagentaSilver / Other SilverRedBlue / Other BlueDark cyanPearlGold / Other Gold
