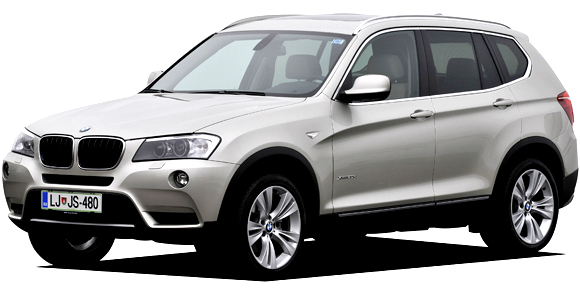

BMW X3 X DRIVE 28I

BMW X3

WX30 · X DRIVE 28I

Description

Modification: X DRIVE 28I
Chassis ID: WX30
Dates releasing: 2011.3~
Base price, ¥: CBA-WX30
Body size: 4650x1880x1675
Interior (LxWxH): ----x----x----
Wheelbase: 2810
Track f/r: 1595mm/1610mm
Full weight, kg: 1850
Body type: SUV
Doors / seats: 5 door / 5

Safe equipment

Driver's air bag: ✓
Front passenger air bag: ✓
Side airbags: ✓
ABS: ✓
TRC: ✓
Belts w/ tensioner: ✓
Belts w/ effort limiter: ✓
Belts w/ holding: ✓
Child-seat fixation: ×
Safety planks: ✓
Brake assist: ✓
Energy-absorbing body: ×
EBD: ×
Anti-theft device: ✓
Additional equipment: DSC(ダイナミックスタビリティコントロール) CBC(コーナリングブレーキコン&

Comfort

Air conditioner: Full Auto
Power window: ✓
Central switch: ✓
Steering column length: ✓
Steering column height: ✓
Cruise control: ✓
Leather steering wheel: ✓
Leather seats: —
Power front seat: ✓
Power rear seat: ×
Wood panel: ×
Sunroof: ×

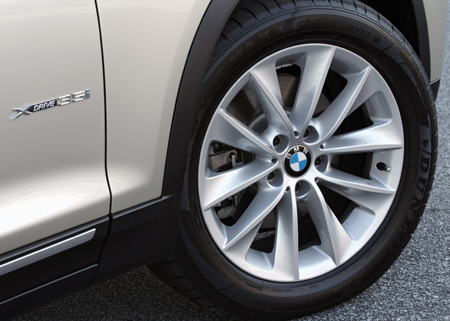

Alloy wheels: 18 inches standard

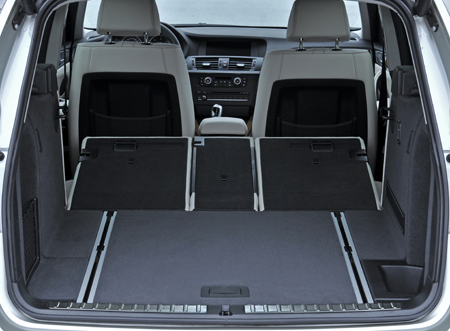

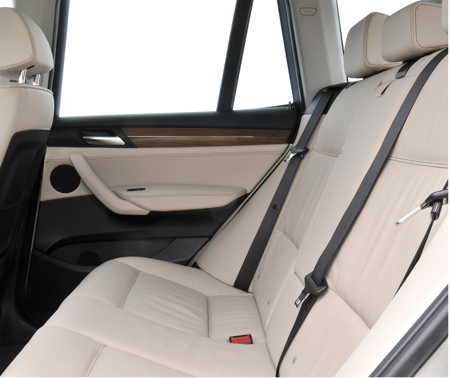

Folding seat: split
Glass w/ UV filter: ×
Toned glasses: ×

Engine

Model: N52B30A
Type: inline 6 cylinder DOHC
Bore x stroke, mm: 85.0x88.0
Engine size, cc: 2996
Compression ratio: 10.7
Fuel injection: デジタルモーターエレクトロニク&#1247
Max power, hp/rpm: 258ps(190kW)/6600rpm
Max torque, Nm/rpm: 31.6kg m(310N m)/2600~3000rpm
Supercharger: ×
Fuel tank, liters: 67 l
Fuel: Unleaded premium gasoline
Fuel consumption, l/100km: 9.4

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: ダブル JOIN トスプリング Strut type 、 Coil spring 、ス
Rear suspension: 5-link 、 Coil spring 、スタビライザー
Front brake: Ventilated disk
Rear brake: Ventilated disk
Front wheel: 245/50R18
Rear wheel: 245/50R18
Min turn diameter, m: 5.7

Gearbox

Number of stages: 8AT
Drive: Full-time 4WD
LSD: ----

Exterior equipment

Front fog lights: ✓
Rear fog lights: ✓

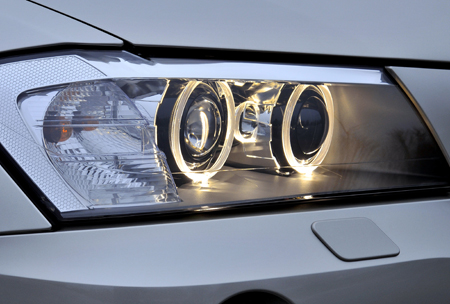

Xenon: ✓
Extra front lights: ×
Spoilers (f / r): × / ×
Wiper: ✓

Navigation & sound

Navigation: ✓
Navigation device: HDD
Audio: AM/FMラジオ
CD player: 単装

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
—	4.714	3.143	2.106	1.667	1.285	1.000	0.839	0.667	3.295

Available colors

black / Black II (solid color) / Black sapphire (metallic)white / Alpin White III (Solid Color)greenMaroon (brown) / Other Maroon (brown)OliveNavy blue / Other Navy bluePurpleAshes / Other AshesYellowYellow-greenBlack (P) / Other Black (P)MagentaSilver / Other SilverRed / Other RedBlueDark cyanPearlGold
