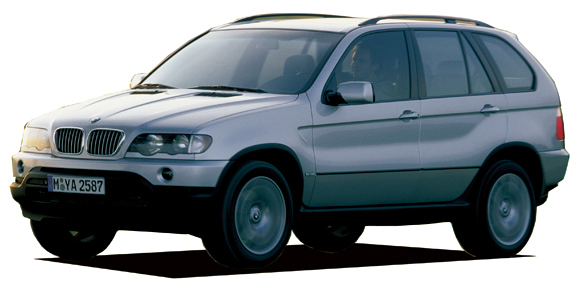

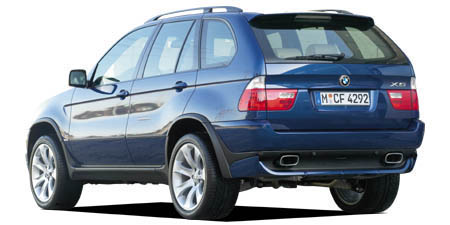

BMW X5 3.0I

BMW X5

FA30N · 3.0I

Description

Modification: 3.0I
Chassis ID: FA30N
Dates releasing: 2006.9~
Base price, ¥: GH-FA30N
Body size: 4665x1870x1740
Interior (LxWxH): ----x----x----
Wheelbase: 2820
Track f/r: 1575mm/1575mm
Full weight, kg: 2080
Body type: SUV
Doors / seats: 5 door / 5

Safe equipment

Driver's air bag: ✓
Front passenger air bag: ✓
Side airbags: ✓
ABS: ✓
TRC: ×
Belts w/ tensioner: ✓
Belts w/ effort limiter: ✓
Belts w/ holding: ✓
Child-seat fixation: ×
Safety planks: ✓
Brake assist: ✓
Energy-absorbing body: ×
EBD: ×
Anti-theft device: ✓
Additional equipment: DSC/ダイナミックスタビリティコントロール ASC-X/オートマチックスタビリテ&

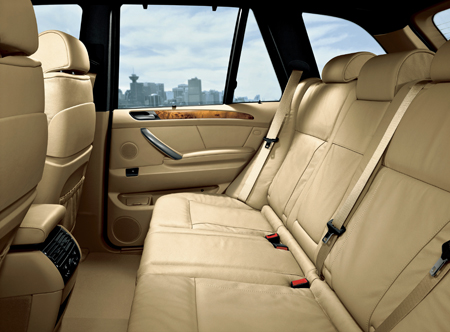

Comfort

Air conditioner: Full Auto
Power window: ✓
Central switch: ✓
Steering column length: ✓
Steering column height: ✓
Cruise control: ✓
Leather steering wheel: ✓
Leather seats: —
Power front seat: ✓
Power rear seat: ×
Wood panel: ✓
Sunroof: ◯
Alloy wheels: 17 inches standard
Folding seat: split
Glass w/ UV filter: ◯
Toned glasses: ×

Engine

Model: 30 6S
Type: inline 6 cylinder DOHC 24-valves
Bore x stroke, mm: 84.0x89.6
Engine size, cc: 2979
Compression ratio: 10.2
Fuel injection: 電子制御燃料噴射
Max power, hp/rpm: 231ps(170kW)/5900rpm
Max torque, Nm/rpm: 30.6kg m(300N m)/3500rpm
Supercharger: ×
Fuel tank, liters: 92 l
Fuel: Unleaded premium gasoline
Fuel consumption, l/100km: 13.9

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: ダブル JOIN トスプリング Strut
Rear suspension: インテグラルアーム
Front brake: Ventilated disk
Rear brake: disk
Front wheel: 235/65R17
Rear wheel: 235/65R17
Min turn diameter, m: 6.1

Gearbox

Number of stages: 5AT
Drive: Full-time 4WD
LSD: ----

Exterior equipment

Front fog lights: ✓
Rear fog lights: ✓
Xenon: ✓
Extra front lights: ×
Spoilers (f / r): × / ✓
Wiper: ✓

Navigation & sound

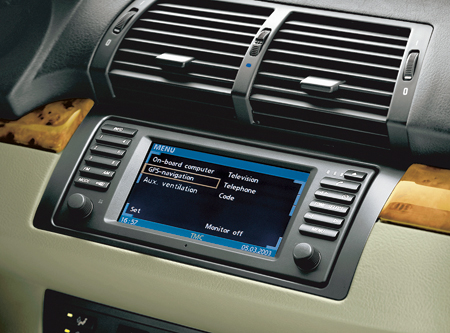

Navigation: ◯
Navigation device: DVD
Audio: AM/FMラジオ
CD player: 単装

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
—	3.419	2.215	1.600	1.000	0.751	—	—	—	3.028

Available colors

black / Black II (solid color) / Black sapphire (metallic)white / Alpin White III (Solid Color)green / Other greenMaroon (brown)Olive / Other OliveNavy bluePurpleAshes / Other AshesYellowYellow-greenBlack (P)MagentaSilver / Other SilverRedBlue / Other BlueDark cyanPearlGold / Other Gold
