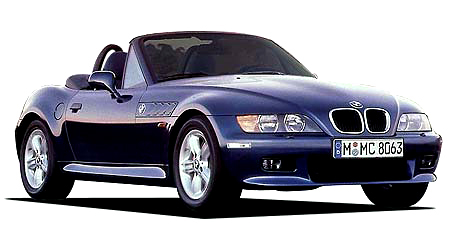

BMW Z3 ROADSTER 2.8

BMW Z3 ROADSTER

CH28 · 2.8

Description

Modification: 2.8
Chassis ID: CH28
Dates releasing: 1999.7~
Base price, ¥: GF-CH28
Body size: 4060x1740x1280
Interior (LxWxH): ----x----x----
Wheelbase: 2445
Track f/r: 1415mm/1495mm
Full weight, kg: 1330
Body type: Open
Doors / seats: 2 door / 2

Safe equipment

Driver's air bag: ✓
Front passenger air bag: ✓
Side airbags: ✓
ABS: ✓
TRC: ✓
Belts w/ tensioner: ✓
Belts w/ effort limiter: ✓
Belts w/ holding: ×
Child-seat fixation: ×
Safety planks: ✓
Brake assist: ×
Energy-absorbing body: ×
EBD: ×
Anti-theft device: ×
Additional equipment: ×

Comfort

Air conditioner: Manual
Power window: ✓
Central switch: ✓
Steering column length: ×
Steering column height: ×
Cruise control: ×
Leather steering wheel: ✓
Leather seats: —
Power front seat: ✓
Power rear seat: ×
Wood panel: ✓
Sunroof: ×
Alloy wheels: 16 inches standard
Folding seat: ×
Glass w/ UV filter: ×
Toned glasses: ×

Engine

Model: 28 6S
Type: inline 6 cylinder DOHC 24-valves
Bore x stroke, mm: ----x----
Engine size, cc: 2793
Compression ratio: 10.2
Fuel injection: デジタルモーターエレクトロニク&#1247
Max power, hp/rpm: 193ps(142kW)/5500rpm
Max torque, Nm/rpm: 28.5kg m(279.5N m)/3500rpm
Supercharger: ×
Fuel tank, liters: 51 l
Fuel: Unleaded premium gasoline
Fuel consumption, l/100km: 11.7

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: シングル JOIN トスプリング Strut type 、 Coil spring 、
Rear suspension: セミトレーリング type 、 Coil spring 、スタビ&#125
Front brake: Ventilated disk
Rear brake: disk
Front wheel: 225/50R16
Rear wheel: 225/50R16
Min turn diameter, m: 4.9

Gearbox

Number of stages: 4AT
Drive: FR
LSD: ✓

Exterior equipment

Front fog lights: ✓
Rear fog lights: ✓
Xenon: ×
Extra front lights: ×
Spoilers (f / r): × / ×
Wiper: ×

Navigation & sound

Navigation: ×
Navigation device: It is not
Audio: AM/FM radio with CS player
CD player: ×

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
—	—	—	—	—	—	—	—	—	----

Available colors

black / BLACK II / Other blackwhite / Alpin White IIIgreen / Other greenMaroon (brown)Olive / Other OliveNavy blue / Other Navy bluePurpleAshes / Other AshesYellowYellow-greenBlack (P)MagentaSilver / Other SilverRed / Other RedBlueDark cyanPearlGold
