JDM Vehicle Catalog

Vehicle Specs

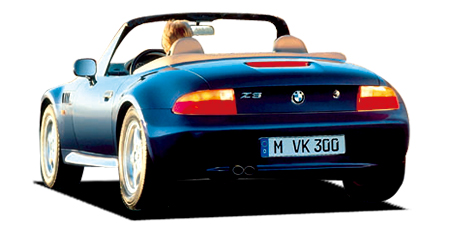

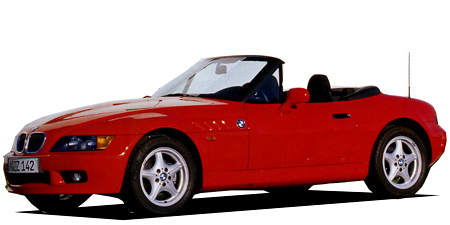

BMW Z3 ROADSTER BASE GRADE

BMW Z3 ROADSTER

CH19 · BASE GRADE

Description

Modification: BASE GRADE
Chassis ID: CH19
Dates releasing: 1997.1~
Base price, ¥: E-CH19
Body size: 4035x1690x1275
Interior (LxWxH): ----x----x----
Wheelbase: 2445
Track f/r: 1410mm/1425mm
Full weight, kg: 1220
Body type: Open
Doors / seats: 2 door / 2

Safe equipment

Driver's air bag: ✓
Front passenger air bag: ✓
Side airbags: ×
ABS: ✓
TRC: ✓
Belts w/ tensioner: ✓
Belts w/ effort limiter: ×
Belts w/ holding: ×
Child-seat fixation: ×
Safety planks: ✓
Brake assist: ×
Energy-absorbing body: ×
EBD: ×
Anti-theft device: ×
Additional equipment: ×

Comfort

Air conditioner: Manual
Power window: ✓
Central switch: ✓
Steering column length: ×
Steering column height: ×
Cruise control: ×
Leather steering wheel: ✓
Leather seats: —
Power front seat: ×
Power rear seat: ×
Wood panel: ◯
Sunroof: ×
Alloy wheels: 15 inches standard
Folding seat: ×
Glass w/ UV filter: ×
Toned glasses: ×

Engine

Model: 19 4S
Type: inline 4 cylinder DOHC 16-valves
Bore x stroke, mm: 85.0x83.5
Engine size, cc: 1895
Compression ratio: 10.0
Fuel injection: デジタルモーターエレクトロニク&#1247
Max power, hp/rpm: 140ps(103kW)/6000rpm
Max torque, Nm/rpm: 18.3kg m(179.5N m)/4300rpm
Supercharger: ×
Fuel tank, liters: 51 l
Fuel: Unleaded premium gasoline
Fuel consumption, l/100km: 7.8

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: シングル JOIN トスプリング Strut type 、 Coil spring 、
Rear suspension: セミトレーリング type 、 Coil spring 、スタビ&#125
Front brake: disk
Rear brake: disk
Front wheel: 205/60R15
Rear wheel: 205/60R15
Min turn diameter, m: 4.7

Gearbox

Number of stages: 5MT
Drive: FR
LSD: ✓

Exterior equipment

Front fog lights: ✓
Rear fog lights: ✓
Xenon: ×
Extra front lights: ×
Spoilers (f / r): × / ×
Wiper: ×

Navigation & sound

Navigation: ×
Navigation device: It is not
Audio: AM/FM radio with CS player
CD player: ×

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
—	—	—	—	—	—	—	—	—	----

Available colors

black / BLACK II / Other blackwhite / Alpin White IIIgreen / Other greenMaroon (brown) / Other Maroon (brown)OliveNavy blue / Other Navy bluePurpleAshesYellowYellow-green / Other Yellow-greenBlack (P)MagentaSilver / Other SilverRed / Other RedBlue / Other BlueDark cyan / Other Dark cyanPearlGold
