JDM Vehicle Catalog

Vehicle Specs

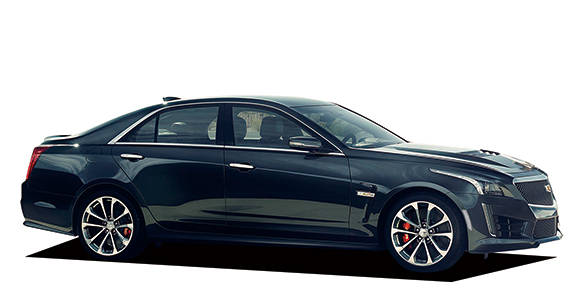

CADILLAC CTSV SPEC-A

CADILLAC CTSV

A1LLV · SPEC-A

Description

Modification: SPEC-A
Chassis ID: A1LLV
Dates releasing: 2017.1~
Base price, ¥: ABA-A1LLV
Body size: 5010x1870x1465
Interior (LxWxH): 1900x1360x1110
Wheelbase: 2910
Track f/r: 1575mm/1555mm
Full weight, kg: 1910
Body type: Sedan
Doors / seats: 4 door / 5

Safe equipment

Driver's air bag: ✓
Front passenger air bag: ✓
Side airbags: ✓
ABS: ✓
TRC: ✓
Belts w/ tensioner: ✓
Belts w/ effort limiter: ✓
Belts w/ holding: ✓
Child-seat fixation: ✓
Safety planks: ✓
Brake assist: ✓
Energy-absorbing body: ×
EBD: ×
Anti-theft device: ✓
Additional equipment: ×

Comfort

Air conditioner: Dual air conditioning
Power window: ✓
Central switch: ✓
Steering column length: ✓
Steering column height: ✓
Cruise control: ✓
Leather steering wheel: ×
Leather seats: —
Power front seat: ✓
Power rear seat: ×
Wood panel: ×
Sunroof: シングル
Alloy wheels: 19 inches standard
Folding seat: split
Glass w/ UV filter: ×
Toned glasses: ×

Engine

Model: 6K
Type: V-type 8 cylinder OHVSチャージャ&#
Bore x stroke, mm: 103.2x92.0
Engine size, cc: 6156
Compression ratio: ----
Fuel injection: 電子 type 燃料噴射(筒内直接噴射)
Max power, hp/rpm: 649ps(477kW)/6400rpm
Max torque, Nm/rpm: 87.2kg m(855N m)/3600rpm
Supercharger: S charger
Fuel tank, liters: 72 l
Fuel: Unleaded premium gasoline
Fuel consumption, l/100km: 0

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: McPherson Strut type
Rear suspension: Multi-link (stabilizer attaching)
Front brake: Ventilated disk
Rear brake: Ventilated disk
Front wheel: 265/35ZR19 98Y
Rear wheel: 295/30ZR19 100Y
Min turn diameter, m: ----

Gearbox

Number of stages: 8AT
Drive: FR
LSD: ✓

Exterior equipment

Front fog lights: ×
Rear fog lights: ✓
Xenon: ✓
Extra front lights: ×
Spoilers (f / r): × / ✓
Wiper: ×

Navigation & sound

Navigation: ✓
Navigation device: メモ
Audio: AM/FMラジオ
CD player: 単装

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
—	4.560	2.971	2.075	1.688	1.270	1.000	0.845	0.652	3.818

Available colors

black / Other blackwhitegreenMaroon (brown)OliveNavy bluePurpleAshes / Other AshesYellowYellow-greenBlack (P)MagentaSilver / Other SilverRed / Other RedBlueDark cyanPearl / Other PearlGold
