JDM Vehicle Catalog

Vehicle Specs

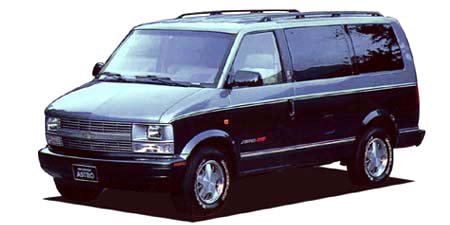

CHEVROLET ASTRO LT

CHEVROLET ASTRO

CL14G · LT

Description

Modification: LT
Chassis ID: CL14G
Dates releasing: 1996.3~
Base price, ¥: E-CL14G
Body size: 4805x1960x1930
Interior (LxWxH): 2655x1690x1210
Wheelbase: 2820
Track f/r: 1655mm/1655mm
Full weight, kg: 2140
Body type: MV 1Box
Doors / seats: 4 door / 7

Safe equipment

Driver's air bag: ✓
Front passenger air bag: ✓
Side airbags: ×
ABS: ✓
TRC: ×
Belts w/ tensioner: ×
Belts w/ effort limiter: ×
Belts w/ holding: ✓
Child-seat fixation: ×
Safety planks: ✓
Brake assist: ×
Energy-absorbing body: ×
EBD: ×
Anti-theft device: ×
Additional equipment: ×

Comfort

Air conditioner: Manual
Power window: ✓
Central switch: ✓
Steering column length: ×
Steering column height: ✓
Cruise control: ✓
Leather steering wheel: ✓
Leather seats: —
Power front seat: ✓
Power rear seat: ×
Wood panel: ×
Sunroof: ×
Alloy wheels: 15 inches standard
Folding seat: ×
Glass w/ UV filter: ×
Toned glasses: ×

Engine

Model: 4G
Type: water cooling V-type 6 cylinder OHV
Bore x stroke, mm: 101.6x88.3
Engine size, cc: 4295
Compression ratio: 9.2
Fuel injection: CPI
Max power, hp/rpm: 190ps(140kW)/4400rpm
Max torque, Nm/rpm: 34.5kg m(338.3N m)/2800rpm
Supercharger: ×
Fuel tank, liters: 102 l
Fuel: Regular unleaded gasoline
Fuel consumption, l/100km: 0

Steering & suspension

Steering: Other
Front suspension: Double wishbone type トーションバー
Rear suspension: Axle リーフスプリング
Front brake: Ventilated disk
Rear brake: Drum
Front wheel: P215/75R15 100S
Rear wheel: P215/75R15 100S
Min turn diameter, m: 6.2

Gearbox

Number of stages: 4AT
Drive: Full-time 4WD
LSD: ✓

Exterior equipment

Front fog lights: ×
Rear fog lights: ×
Xenon: ×
Extra front lights: ×
Spoilers (f / r): × / ×
Wiper: ✓

Navigation & sound

Navigation: ×
Navigation device: It is not
Audio: AM/FM radio with CS player
CD player: ×

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
—	3.058	1.625	1.000	0.696	—	—	—	—	2.294

Available colors

blackwhite / Other whitegreenMaroon (brown)OliveNavy bluePurpleAshesYellowYellow-greenBlack (P)MagentaSilverRed / Other RedBlue / Other BlueDark cyan / Other Dark cyanPearlGold
