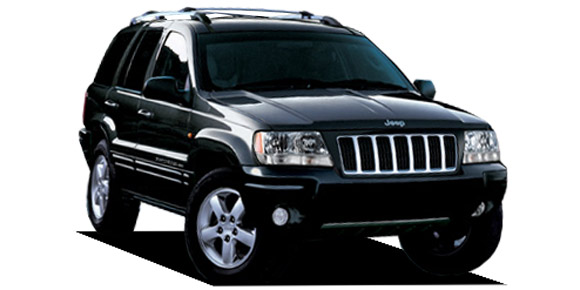

CHRYSLER JEEP JEEP GRAND CHEROKEE VISION SERIES

CHRYSLER JEEP JEEP GRAND CHEROKEE

WJ40 · VISION SERIES

Description

Modification: VISION SERIES
Chassis ID: WJ40
Dates releasing: 2004.6~
Base price, ¥: GH-WJ40
Body size: 4630x1860x1710
Interior (LxWxH): ----x----x----
Wheelbase: 2690
Track f/r: 1510mm/1510mm
Full weight, kg: 1970
Body type: SUV
Doors / seats: 5 door / 5

Safe equipment

Driver's air bag: ✓
Front passenger air bag: ✓
Side airbags: ✓
ABS: ✓
TRC: ×
Belts w/ tensioner: ×
Belts w/ effort limiter: ×
Belts w/ holding: ✓
Child-seat fixation: ×
Safety planks: ✓
Brake assist: ×
Energy-absorbing body: ×
EBD: ✓
Anti-theft device: ✓
Additional equipment: ×

Comfort

Air conditioner: Full Auto
Power window: ✓
Central switch: ✓
Steering column length: ×
Steering column height: ✓
Cruise control: ✓
Leather steering wheel: ✓
Leather seats: —
Power front seat: ✓
Power rear seat: ×
Wood panel: ×
Sunroof: ×
Alloy wheels: 17 inches standard
Folding seat: split
Glass w/ UV filter: ×
Toned glasses: ✓

Engine

Model: MX
Type: inline 6 cylinder OHV
Bore x stroke, mm: 98.5x86.6
Engine size, cc: 3959
Compression ratio: 8.7
Fuel injection: 電子 type 燃料噴射装置
Max power, hp/rpm: 190ps(140kW)/5000rpm
Max torque, Nm/rpm: 30.1kg m(295N m)/3050~4000rpm
Supercharger: ×
Fuel tank, liters: 78 l
Fuel: Regular unleaded gasoline
Fuel consumption, l/100km: 15.4

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: コイルリジット
Rear suspension: コイルリジット
Front brake: Ventilated disk
Rear brake: disk
Front wheel: 235/65R17
Rear wheel: 235/65R17
Min turn diameter, m: 5.8

Gearbox

Number of stages: 4AT
Drive: Full-time 4WD
LSD: ----

Exterior equipment

Front fog lights: ✓
Rear fog lights: ✓
Xenon: ×
Extra front lights: ×
Spoilers (f / r): × / ×
Wiper: ✓

Navigation & sound

Navigation: ×
Navigation device: It is not
Audio: AM/FM radio with CS player
CD player: 単装

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
—	2.744	1.542	1.000	0.688	—	—	—	—	2.214

Available colors

black / Other blackwhite / Other whitegreenMaroon (brown)OliveNavy bluePurpleAshesYellowYellow-greenBlack (P)MagentaSilverRedBlueDark cyanPearlGold
