CHRYSLER GRAND VOYAGER TOURING

CHRYSLER GRAND VOYAGER

RT38 · TOURING

Description

Modification: TOURING
Chassis ID: RT38
Dates releasing: 2008.5~
Base price, ¥: ABA-RT38
Body size: 5145x2005x1755
Interior (LxWxH): ----x----x----
Wheelbase: 3080
Track f/r: 1650mm/1630mm
Full weight, kg: 2030
Body type: MV 1Box
Doors / seats: 5 door / 7

Safe equipment

Driver's air bag: ✓
Front passenger air bag: ✓
Side airbags: ✓
ABS: ✓
TRC: ✓
Belts w/ tensioner: ✓
Belts w/ effort limiter: ✓
Belts w/ holding: ✓
Child-seat fixation: ×
Safety planks: ✓
Brake assist: ✓
Energy-absorbing body: ×
EBD: ×
Anti-theft device: ✓
Additional equipment: エレクトロニックスタビリティ PRO グラム

Comfort

Air conditioner: Dual air conditioning
Power window: ✓
Central switch: ✓
Steering column length: ×
Steering column height: ✓
Cruise control: ✓
Leather steering wheel: ✓
Leather seats: —
Power front seat: ✓
Power rear seat: ×
Wood panel: ✓
Sunroof: ×
Alloy wheels: 16 inches standard
Folding seat: split
Glass w/ UV filter: ×
Toned glasses: ✓

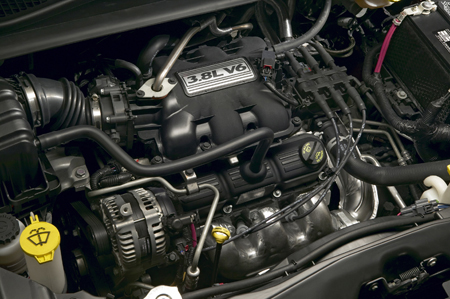

Engine

Model: 8
Type: V-type 6 cylinder OHV 12-valves
Bore x stroke, mm: 96.0x87.1
Engine size, cc: 3782
Compression ratio: 9.7
Fuel injection: 電子 type 燃料噴射装置
Max power, hp/rpm: 193ps(142kW)/5200rpm
Max torque, Nm/rpm: 31.1kg m(305N m)/4000rpm
Supercharger: ×
Fuel tank, liters: 75 l
Fuel: Unleaded premium gasoline
Fuel consumption, l/100km: 14.7

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: Strut type Coil spring
Rear suspension: アクスルビーム type Coil spring
Front brake: Ventilated disk
Rear brake: disk
Front wheel: 225/65R16
Rear wheel: 225/65R16
Min turn diameter, m: 6.0

Gearbox

Number of stages: 6AT
Drive: FF
LSD: ----

Exterior equipment

Front fog lights: ✓
Rear fog lights: ✓
Xenon: ×
Extra front lights: ×
Spoilers (f / r): ✓ / ×
Wiper: ✓

Navigation & sound

Navigation: ×
Navigation device: It is not
Audio: AM/FMラジオ
CD player: ×

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
—	4.127	2.842	2.284	1.452	1.000	0.689	—	—	3.215

Available colors

black / Other blackwhite / Other whitegreenMaroon (brown)OliveNavy blue / Other Navy bluePurpleAshesYellowYellow-greenBlack (P) / Other Black (P)MagentaSilver / Other SilverRed / Other RedBlueDark cyanPearlGold / Other Gold
