JDM Vehicle Catalog

Vehicle Specs

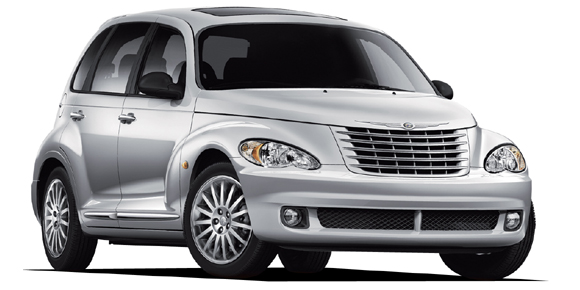

CHRYSLER PT CRUISER LIMITED

CHRYSLER PT CRUISER

PT24 · LIMITED

Description

Modification: LIMITED
Chassis ID: PT24
Dates releasing: 2008.1~
Base price, ¥: ABA-PT24
Body size: 4295x1750x1630
Interior (LxWxH): ----x----x----
Wheelbase: 2615
Track f/r: 1480mm/1480mm
Full weight, kg: 1470
Body type: Hatch
Doors / seats: 5 door / 5

Safe equipment

Driver's air bag: ✓
Front passenger air bag: ✓
Side airbags: ✓
ABS: ✓
TRC: ✓
Belts w/ tensioner: ✓
Belts w/ effort limiter: ✓
Belts w/ holding: ✓
Child-seat fixation: ×
Safety planks: ✓
Brake assist: ×
Energy-absorbing body: ×
EBD: ×
Anti-theft device: ✓
Additional equipment: ×

Comfort

Air conditioner: Manual
Power window: ✓
Central switch: ✓
Steering column length: ×
Steering column height: ✓
Cruise control: ✓
Leather steering wheel: ✓
Leather seats: —
Power front seat: ✓
Power rear seat: ×
Wood panel: ×
Sunroof: シングル
Alloy wheels: 17 inches standard
Folding seat: split
Glass w/ UV filter: ×
Toned glasses: ✓

Engine

Model: S
Type: inline 4 cylinder DOHC 16-valves
Bore x stroke, mm: 87.5x101.0
Engine size, cc: 2429
Compression ratio: 9.5
Fuel injection: 電子 type 燃料噴射装置
Max power, hp/rpm: 143ps(105kW)/5200rpm
Max torque, Nm/rpm: 21.8kg m(214N m)/4000rpm
Supercharger: ×
Fuel tank, liters: 56 l
Fuel: Unleaded premium gasoline
Fuel consumption, l/100km: 11.6

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: McPherson type Strut
Rear suspension: コイルリジット
Front brake: Ventilated disk
Rear brake: disk
Front wheel: 205/50R17
Rear wheel: 205/50R17
Min turn diameter, m: 6.1

Gearbox

Number of stages: 4AT
Drive: FF
LSD: ----

Exterior equipment

Front fog lights: ✓
Rear fog lights: ✓
Xenon: ×
Extra front lights: ×
Spoilers (f / r): × / ✓
Wiper: ✓

Navigation & sound

Navigation: ×
Navigation device: It is not
Audio: AM/FMラジオ
CD player: 単装

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
—	2.842	1.573	1.000	0.689	—	—	—	—	2.214

Available colors

black / Other blackwhite / Other whitegreen / Other greenMaroon (brown)OliveNavy blue / Other Navy bluePurpleAshes / Other AshesYellowYellow-greenBlack (P)MagentaSilver / Other SilverRed / Other RedBlue / Other BlueDark cyanPearl / Other PearlGold
