JDM Vehicle Catalog

Vehicle Specs

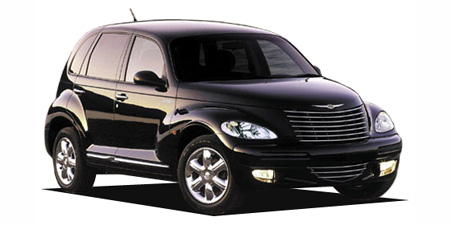

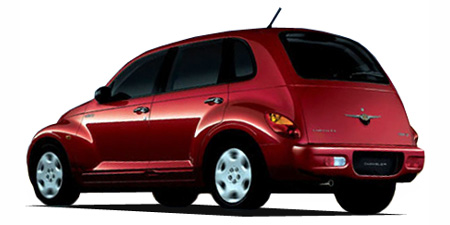

CHRYSLER PT CRUISER TOURING

CHRYSLER PT CRUISER

PT2K20 · TOURING

Description

Modification: TOURING
Chassis ID: PT2K20
Dates releasing: 2004.4~
Base price, ¥: GH-PT2K20
Body size: 4330x1750x1630
Interior (LxWxH): ----x----x----
Wheelbase: 2615
Track f/r: 1480mm/1480mm
Full weight, kg: 1450
Body type: Hatch
Doors / seats: 5 door / 5

Safe equipment

Driver's air bag: ✓
Front passenger air bag: ✓
Side airbags: ✓
ABS: ✓
TRC: ✓
Belts w/ tensioner: ×
Belts w/ effort limiter: ×
Belts w/ holding: ✓
Child-seat fixation: ×
Safety planks: ✓
Brake assist: ×
Energy-absorbing body: ×
EBD: ✓
Anti-theft device: ✓
Additional equipment: ×

Comfort

Air conditioner: Manual
Power window: ✓
Central switch: ✓
Steering column length: ×
Steering column height: ✓
Cruise control: ✓
Leather steering wheel: ×
Leather seats: —
Power front seat: ×
Power rear seat: ×
Wood panel: ×
Sunroof: ×
Alloy wheels: 16 inches standard
Folding seat: split
Glass w/ UV filter: ×
Toned glasses: ✓

Engine

Model: T
Type: inline 4 cylinder DOHC 16-valves
Bore x stroke, mm: 87.5x83.0
Engine size, cc: 1996
Compression ratio: 9.4
Fuel injection: 電子 type 燃料噴射装置
Max power, hp/rpm: 136ps(100kW)/5700rpm
Max torque, Nm/rpm: 19.2kg m(188N m)/4150rpm
Supercharger: ×
Fuel tank, liters: 56 l
Fuel: Regular unleaded gasoline
Fuel consumption, l/100km: 11

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: McPherson type Strut
Rear suspension: コイルリジット
Front brake: Ventilated disk
Rear brake: disk
Front wheel: 205/55R16 91H
Rear wheel: 205/55R16 91H
Min turn diameter, m: 6.1

Gearbox

Number of stages: 4AT
Drive: FF
LSD: ----

Exterior equipment

Front fog lights: ✓
Rear fog lights: ✓
Xenon: ×
Extra front lights: ×
Spoilers (f / r): × / ×
Wiper: ✓

Navigation & sound

Navigation: ×
Navigation device: It is not
Audio: AM/FM radio with CS player
CD player: 単装

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
—	2.842	1.573	1.000	0.689	—	—	—	—	2.214

Available colors

black / Other blackwhitegreenMaroon (brown)OliveNavy blue / Other Navy bluePurpleAshesYellowYellow-greenBlack (P)MagentaSilverRed / Other RedBlueDark cyanPearlGold
