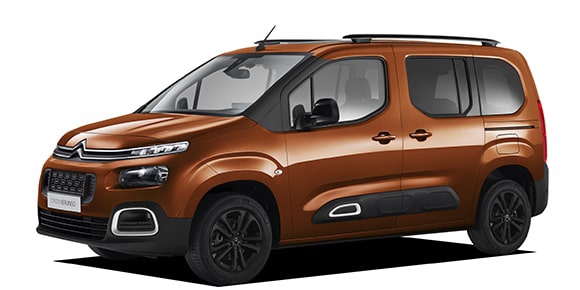

CITROEN BERLINGO SHINE

CITROEN BERLINGO

K9CYH01 · SHINE

Description

Modification: SHINE
Chassis ID: K9CYH01
Dates releasing: 2022.1~
Base price, ¥: 3DA-K9CYH01
Body size: 4405x1850x1850
Interior (LxWxH): ----x----x----
Wheelbase: 2785
Track f/r: 1555mm/1570mm
Full weight, kg: 1630
Body type: MV 1Box
Doors / seats: 5 door / 5

Safe equipment

Driver's air bag: ✓
Front passenger air bag: ✓
Side airbags: ✓
ABS: ✓
TRC: ×
Belts w/ tensioner: ×
Belts w/ effort limiter: ×
Belts w/ holding: ×
Child-seat fixation: ×
Safety planks: ×
Brake assist: ✓
Energy-absorbing body: ×
EBD: ✓
Anti-theft device: ✓
Additional equipment: ESC(エレクトロニックスタビリティコントロール)

Comfort

Air conditioner: Full Auto
Power window: ✓
Central switch: ×
Steering column length: ×
Steering column height: ×
Cruise control: ✓
Leather steering wheel: ✓
Leather seats: —
Power front seat: ×
Power rear seat: ×
Wood panel: ×
Sunroof: 特殊形状
Alloy wheels: 16 inches standard
Folding seat: split
Glass w/ UV filter: ×
Toned glasses: ×

Engine

Model: DV5
Type: inline 4 cylinder DOHCturbo (Diesel)
Bore x stroke, mm: 75.0x84.8
Engine size, cc: 1498
Compression ratio: 16.4
Fuel injection: 電子制御 type 燃料噴射
Max power, hp/rpm: 130ps(96kW)/3750rpm
Max torque, Nm/rpm: 30.6kg m(300N m)/1750rpm
Supercharger: Turbo
Fuel tank, liters: 50 l
Fuel: Diesel
Fuel consumption, l/100km: 4.7

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: McPherson Strut type
Rear suspension: Torsion beam
Front brake: Ventilated disk
Rear brake: disk
Front wheel: 205/60 R16
Rear wheel: 205/60 R16
Min turn diameter, m: 5.6

Gearbox

Number of stages: 8AT
Drive: FF
LSD: ----

Exterior equipment

Front fog lights: ✓
Rear fog lights: ✓
Xenon: ×
Extra front lights: ×
Spoilers (f / r): × / ✓
Wiper: ✓

Navigation & sound

Navigation: ×
Navigation device: It is not
Audio: AM/FMラジオ
CD player: ×

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
—	—	—	—	—	—	—	—	—	----

Available colors

blackwhite / Other whitegreenMaroon (brown) / Other Maroon (brown)OliveNavy bluePurpleAshesYellowYellow-greenBlack (P)MagentaSilver / Other SilverRedBlue / Other BlueDark cyanPearlGold
