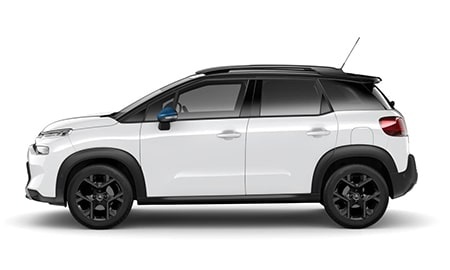

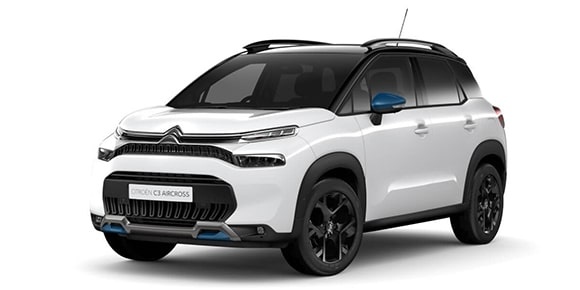

CITROEN C3 AIRCROSS SURF EDITION BY RIP CURL

CITROEN C3 AIRCROSS

A8YH01 · SURF EDITION BY RIP CURL

Description

Modification: SURF EDITION BY RIP CURL
Chassis ID: A8YH01
Dates releasing: 2024.5~
Base price, ¥: 3DA-A8YH01
Body size: 4160x1765x1630
Interior (LxWxH): ----x----x----
Wheelbase: 2605
Track f/r: 1505mm/1485mm
Full weight, kg: 1350
Body type: SUV
Doors / seats: 5 door / 5

Safe equipment

Driver's air bag: ✓
Front passenger air bag: ✓
Side airbags: ✓
ABS: ✓
TRC: ×
Belts w/ tensioner: ✓
Belts w/ effort limiter: ✓
Belts w/ holding: ✓
Child-seat fixation: ×
Safety planks: ✓
Brake assist: ✓
Energy-absorbing body: ×
EBD: ✓
Anti-theft device: ✓
Additional equipment: ESC(エレクトロニックスタビリティコントロール) ヒルディセントコントロ&

Comfort

Air conditioner: Full Auto
Power window: ✓
Central switch: ✓
Steering column length: ×
Steering column height: ×
Cruise control: ✓
Leather steering wheel: ✓
Leather seats: —
Power front seat: ×
Power rear seat: ×
Wood panel: ×
Sunroof: ×
Alloy wheels: 17 inches standard

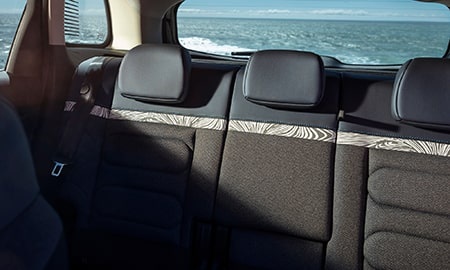

Folding seat: split
Glass w/ UV filter: ×
Toned glasses: ×

Engine

Model: ----
Type: inline 4 cylinder DOHCturbo (Diesel)
Bore x stroke, mm: 75.0x84.8
Engine size, cc: 1498
Compression ratio: 16.4
Fuel injection: 電子制御 type 燃料噴射
Max power, hp/rpm: 120ps(88kW)/3750rpm
Max torque, Nm/rpm: 30.6kg m(300N m)/1750rpm
Supercharger: Turbo
Fuel tank, liters: 45 l
Fuel: Diesel
Fuel consumption, l/100km: 0

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: McPherson Strut type
Rear suspension: Torsion beam
Front brake: Ventilated disk
Rear brake: disk
Front wheel: 215/50 R17
Rear wheel: 215/50 R17
Min turn diameter, m: 5.5

Gearbox

Number of stages: 6AT
Drive: FF
LSD: ----

Exterior equipment

Front fog lights: ✓
Rear fog lights: ✓
Xenon: ×
Extra front lights: ×
Spoilers (f / r): × / ×
Wiper: ✓

Navigation & sound

Navigation: ×
Navigation device: It is not
Audio: AM/FMラジオ
CD player: ×

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
—	4.043	2.370	1.555	1.159	0.852	0.671	—	—	3.192

Available colors

blackwhite / Other whitegreenMaroon (brown)OliveNavy bluePurpleAshesYellowYellow-greenBlack (P)MagentaSilver / Other SilverRedBlueDark cyanPearlGold
