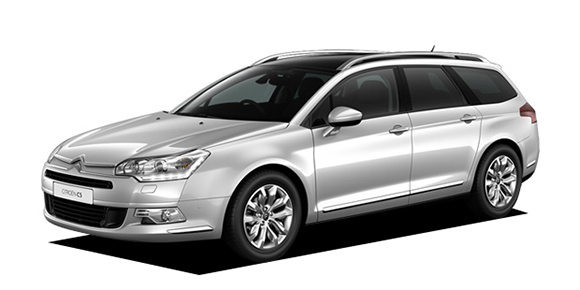

CITROEN C5 TOURER SEDUCTION

CITROEN C5

X75F02 · TOURER SEDUCTION

Description

Modification: TOURER SEDUCTION
Chassis ID: X75F02
Dates releasing: 2012.10~
Base price, ¥: ABA-X75F02
Body size: 4845x1860x1490
Interior (LxWxH): 1970x1505x1165
Wheelbase: 2815
Track f/r: 1585mm/1560mm
Full weight, kg: 1680
Body type: Wagon
Doors / seats: 5 door / 5

Safe equipment

Driver's air bag: ✓
Front passenger air bag: ✓
Side airbags: ✓
ABS: ✓
TRC: ✓
Belts w/ tensioner: ✓
Belts w/ effort limiter: ✓
Belts w/ holding: ✓
Child-seat fixation: ×
Safety planks: ✓
Brake assist: ✓
Energy-absorbing body: ×
EBD: ✓
Anti-theft device: ✓
Additional equipment: ESP(エレクトロニックスタビリティー PRO グラム)

Comfort

Air conditioner: Full Auto
Power window: ✓
Central switch: ✓
Steering column length: ✓
Steering column height: ✓
Cruise control: ✓
Leather steering wheel: ✓
Leather seats: —
Power front seat: ×
Power rear seat: ×
Wood panel: ×

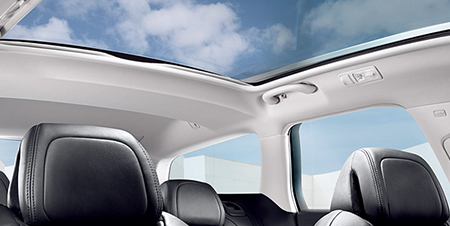

Sunroof: 特殊形状
Alloy wheels: 17 inches standard

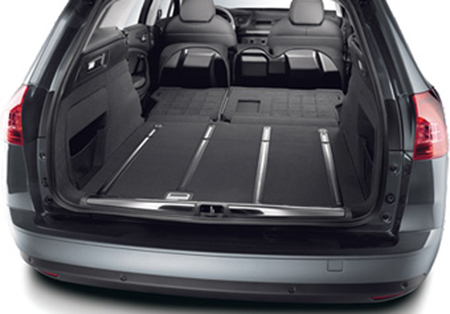

Folding seat: split
Glass w/ UV filter: ✓
Toned glasses: ×

Engine

Model: ----
Type: inline 4 cylinder DOHCturbo
Bore x stroke, mm: 77.0x85.8
Engine size, cc: 1598
Compression ratio: 10.5
Fuel injection: 電子制御コモンレール type 筒内直接噴&#
Max power, hp/rpm: 156ps(115kW)/6000rpm
Max torque, Nm/rpm: 24.5kg m(240N m)/1400~3500rpm
Supercharger: Turbo
Fuel tank, liters: 71 l
Fuel: Unleaded premium gasoline
Fuel consumption, l/100km: 9.8

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: Double wishbone
Rear suspension: マルチリンク
Front brake: Ventilated disk
Rear brake: disk
Front wheel: 225/55R17
Rear wheel: 225/55R17
Min turn diameter, m: 6.1

Gearbox

Number of stages: 6AT
Drive: FF
LSD: ----

Exterior equipment

Front fog lights: ✓
Rear fog lights: ✓

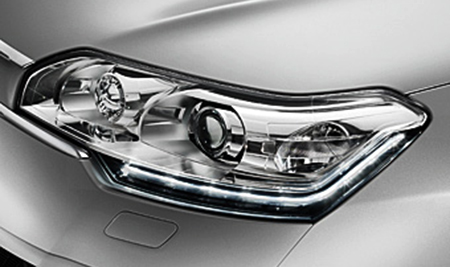

Xenon: ✓
Extra front lights: ×
Spoilers (f / r): × / ✓
Wiper: ✓

Navigation & sound

Navigation: ✓
Navigation device: HDD
Audio: AM/FMラジオ
CD player: 単装

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
—	4.043	2.370	1.555	1.159	0.852	0.671	—	—	3.192

Available colors

black / Other blackwhite / Other whitegreenMaroon (brown) / Other Maroon (brown)OliveNavy blue / Other Navy bluePurpleAshes / Other AshesYellowYellow-greenBlack (P)MagentaSilver / Other SilverRedBlueDark cyanPearlGold / Other Gold
