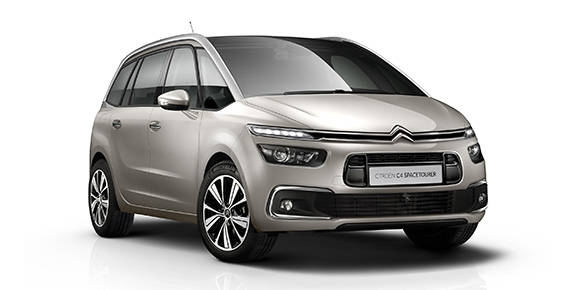

CITROEN GRAND C4 SPACETOURER SHINE BLUE HDI

CITROEN GRAND C4 SPACETOURER

B787AH01 · SHINE BLUE HDI

Description

Modification: SHINE BLUE HDI
Chassis ID: B787AH01
Dates releasing: 2018.9~
Base price, ¥: LDA-B787AH01
Body size: 4605x1825x1670
Interior (LxWxH): ----x----x----
Wheelbase: 2840
Track f/r: 1575mm/1585mm
Full weight, kg: 1640
Body type: MV 1Box
Doors / seats: 5 door / 7

Safe equipment

Driver's air bag: ✓
Front passenger air bag: ✓
Side airbags: ✓
ABS: ✓
TRC: ✓
Belts w/ tensioner: ✓
Belts w/ effort limiter: ✓
Belts w/ holding: ✓
Child-seat fixation: ×
Safety planks: ×
Brake assist: ✓
Energy-absorbing body: ×
EBD: ✓
Anti-theft device: ✓
Additional equipment: ESC(エレクトロニックスタビリティコントロール)

Comfort

Air conditioner: Full Auto
Power window: ✓
Central switch: ✓
Steering column length: ✓
Steering column height: ✓
Cruise control: ✓
Leather steering wheel: ✓
Leather seats: —
Power front seat: ◯
Power rear seat: ×
Wood panel: ×
Sunroof: ◯
Alloy wheels: 17 inches standard
Folding seat: ×
Glass w/ UV filter: ×
Toned glasses: ×

Engine

Model: AH01
Type: inline 4 cylinder DOHCturbo (Diesel)
Bore x stroke, mm: 85.0x88.0
Engine size, cc: 1997
Compression ratio: 16.7
Fuel injection: 電子制御燃料噴射
Max power, hp/rpm: 150ps(110kW)/4000rpm
Max torque, Nm/rpm: 37.7kg m(370N m)/2000rpm
Supercharger: Turbo
Fuel tank, liters: 55 l
Fuel: Diesel
Fuel consumption, l/100km: 5.6

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: McPherson Strut type
Rear suspension: Torsion beam
Front brake: Ventilated disk
Rear brake: disk
Front wheel: 205/55 R17
Rear wheel: 205/55 R17
Min turn diameter, m: 5.5

Gearbox

Number of stages: 6AT
Drive: FF
LSD: ----

Exterior equipment

Front fog lights: ✓
Rear fog lights: ✓
Xenon: ✓
Extra front lights: ×
Spoilers (f / r): × / ×
Wiper: ✓

Navigation & sound

Navigation: ×
Navigation device: It is not
Audio: AM/FMラジオ
CD player: ×

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
—	4.458	2.508	1.555	1.142	0.851	0.671	—	—	3.394

Available colors

black / Other blackwhite / Other whitegreenMaroon (brown)OliveNavy bluePurpleAshesYellowYellow-greenBlack (P)MagentaSilver / Other SilverRed / Other RedBlue / Other BlueDark cyanPearlGold
