JDM Vehicle Catalog

Vehicle Specs

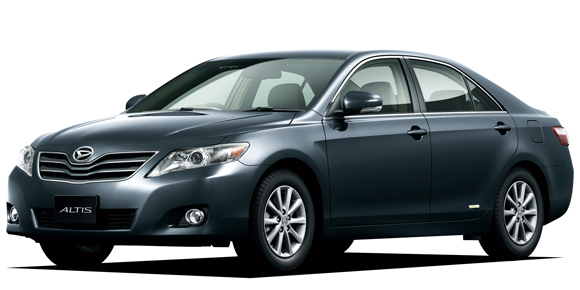

DAIHATSU ALTIS G LIMITED EDITION

DAIHATSU ALTIS

ACV40N · G LIMITED EDITION

Description

Modification: G LIMITED EDITION
Chassis ID: ACV40N
Dates releasing: 2009.1~
Base price, ¥: DBA-ACV40N
Body size: 4815x1820x1470
Interior (LxWxH): 2130x1525x1200
Wheelbase: 2775
Track f/r: 1575mm/1565mm
Full weight, kg: 1500
Body type: Sedan
Doors / seats: 4 door / 5

Safe equipment

Driver's air bag: ✓
Front passenger air bag: ✓
Side airbags: ✓
ABS: ✓
TRC: ✓
Belts w/ tensioner: ✓
Belts w/ effort limiter: ✓
Belts w/ holding: ✓
Child-seat fixation: ✓
Safety planks: ✓
Brake assist: ✓
Energy-absorbing body: 採用
EBD: ✓
Anti-theft device: ✓
Additional equipment: VSC

Comfort

Air conditioner: Full Auto
Power window: ✓
Central switch: ✓
Steering column length: ✓
Steering column height: ✓
Cruise control: ✓
Leather steering wheel: ✓
Leather seats: —
Power front seat: ✓
Power rear seat: ×
Wood panel: ✓
Sunroof: ×
Alloy wheels: 16 inches standard
Folding seat: split
Glass w/ UV filter: ✓
Toned glasses: ×

Engine

Model: 2AZ-FE
Type: inline 4 cylinder DOHC 16-valves
Bore x stroke, mm: 88.5x96.0
Engine size, cc: 2362
Compression ratio: 9.8
Fuel injection: EFI
Max power, hp/rpm: 167ps(123kW)/6000rpm
Max torque, Nm/rpm: 22.8kg m(224N m)/4000rpm
Supercharger: ×
Fuel tank, liters: 70 l
Fuel: Regular unleaded gasoline
Fuel consumption, l/100km: 8.8

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: Strut type Coil spring (stabilizer attaching)
Rear suspension: Strut type Coil spring (stabilizer attaching)
Front brake: Ventilated disk
Rear brake: disk
Front wheel: 215/60R16 95H
Rear wheel: 215/60R16 95H
Min turn diameter, m: 5.5

Gearbox

Number of stages: 5AT
Drive: FF
LSD: ----

Exterior equipment

Front fog lights: ✓
Rear fog lights: ◯
Xenon: ✓
Extra front lights: ×
Spoilers (f / r): × / ×
Wiper: ×

Navigation & sound

Navigation: ◯
Navigation device: HDD
Audio: AM/FMラジオ
CD player: 単装

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
—	3.943	2.197	1.413	0.975	0.703	—	—	—	3.145

Available colors

blackwhitegreen / Dark green micaMaroon (brown)OliveNavy blue / Dark blue micaPurpleAshes / Gray metallicYellowYellow-greenBlack (P)MagentaSilverRedBlueDark cyanPearl / White Pearl Crystal ShineGold / Beige Metallic
