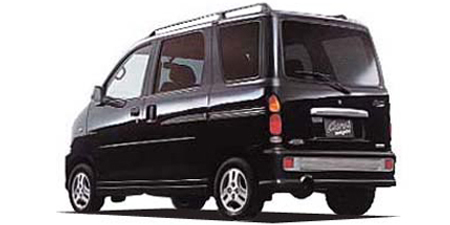

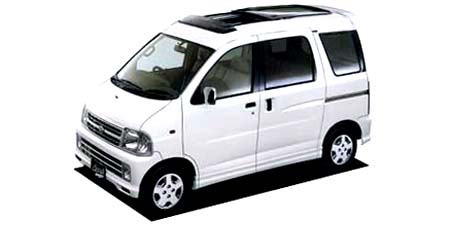

DAIHATSU ATRAI WAGON CUSTOM

DAIHATSU ATRAI WAGON

S220G · CUSTOM

Description

Modification: CUSTOM
Chassis ID: S220G
Dates releasing: 2000.2~
Base price, ¥: GF-S220G
Body size: 3395x1475x1865
Interior (LxWxH): 1670x1310x1255
Wheelbase: 2420
Track f/r: 1285mm/1290mm
Full weight, kg: 950
Body type: Key SUV
Doors / seats: 5 door / 4

Safe equipment

Driver's air bag: ✓
Front passenger air bag: ✓
Side airbags: ×
ABS: ×
TRC: ×
Belts w/ tensioner: ✓
Belts w/ effort limiter: ✓
Belts w/ holding: ✓
Child-seat fixation: ✓
Safety planks: ✓
Brake assist: ×
Energy-absorbing body: ×
EBD: ×
Anti-theft device: ×
Additional equipment: ×

Comfort

Air conditioner: Manual
Power window: ✓
Central switch: ✓
Steering column length: ×
Steering column height: ×
Cruise control: ×
Leather steering wheel: ×
Leather seats: —
Power front seat: ×
Power rear seat: ×
Wood panel: ◯
Sunroof: シングル
Alloy wheels: Option settings YES
Folding seat: split
Glass w/ UV filter: ✓
Toned glasses: ✓

Engine

Model: EF-VE
Type: water cooling inline 3 cylinder DOHC 12-valves
Bore x stroke, mm: 68.0x60.5
Engine size, cc: 659
Compression ratio: 10.5
Fuel injection: EFI
Max power, hp/rpm: 48ps(35kW)/5900rpm
Max torque, Nm/rpm: 6.4kg m(62.8N m)/4000rpm
Supercharger: ×
Fuel tank, liters: 46 l
Fuel: Regular unleaded gasoline
Fuel consumption, l/100km: 6.6

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: McPherson Strut type
Rear suspension: トレーリングリンク Axle Coil spring
Front brake: disk
Rear brake: Drum
Front wheel: 165/70R13 79S
Rear wheel: 165/70R13 79S
Min turn diameter, m: 4.3

Gearbox

Number of stages: 3AT
Drive: FR
LSD: ----

Exterior equipment

Front fog lights: ◯
Rear fog lights: ×
Xenon: ×
Extra front lights: ×
Spoilers (f / r): ✓ / ◯
Wiper: ✓

Navigation & sound

Navigation: ◯
Navigation device: It is not
Audio: AM/FM radio with CS player
CD player: ×

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
—	2.730	1.526	1.000	—	—	—	—	—	2.290

Available colors

black / Black MetallicwhitegreenMaroon (brown)OliveNavy bluePurpleAshesYellowYellow-greenBlack (P)MagentaSilver / Other SilverRed / Other RedBlueDark cyanPearlGold / Beige Metallic
