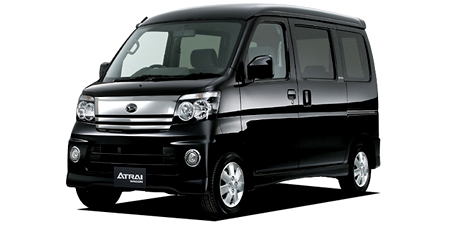

DAIHATSU ATRAI WAGON CUSTOM TURBO R HDD NAVI EDITION

DAIHATSU ATRAI WAGON

S330G · CUSTOM TURBO R HDD NAVI EDITION

Description

Modification: CUSTOM TURBO R HDD NAVI EDITION
Chassis ID: S330G
Dates releasing: 2005.9~
Base price, ¥: TA-S330G
Body size: 3395x1475x1875
Interior (LxWxH): 2015x1310x1350
Wheelbase: 2450
Track f/r: 1295mm/1290mm
Full weight, kg: 1010
Body type: Key SUV
Doors / seats: 5 door / 4

Safe equipment

Driver's air bag: ✓
Front passenger air bag: ✓
Side airbags: ×
ABS: ✓
TRC: ×
Belts w/ tensioner: ✓
Belts w/ effort limiter: ✓
Belts w/ holding: ✓
Child-seat fixation: ✓
Safety planks: ✓
Brake assist: ✓
Energy-absorbing body: 採用
EBD: ✓
Anti-theft device: ×
Additional equipment: ×

Comfort

Air conditioner: Manual
Power window: ✓
Central switch: ✓
Steering column length: ×
Steering column height: ×
Cruise control: ×
Leather steering wheel: ◯
Leather seats: —
Power front seat: ×
Power rear seat: ×
Wood panel: ×
Sunroof: ×
Alloy wheels: Option settings NO
Folding seat: split
Glass w/ UV filter: ✓
Toned glasses: ✓

Engine

Model: EF-DET
Type: water cooling inline 3 cylinder DOHC 12-valves turbo
Bore x stroke, mm: 68.0x60.5
Engine size, cc: 659
Compression ratio: 8.5
Fuel injection: EFI
Max power, hp/rpm: 64ps(47kW)/5900rpm
Max torque, Nm/rpm: 10.5kg m(103N m)/4000rpm
Supercharger: Turbo
Fuel tank, liters: 40 l
Fuel: Regular unleaded gasoline
Fuel consumption, l/100km: 7.1

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: McPherson Strut type Coil spring
Rear suspension: トレーリングリンク Axle Coil spring
Front brake: disk
Rear brake: Drum
Front wheel: 165/65R13 77S
Rear wheel: 165/65R13 77S
Min turn diameter, m: 4.6

Gearbox

Number of stages: 4AT
Drive: Full-time 4WD
LSD: ----

Exterior equipment

Front fog lights: ×
Rear fog lights: ×
Xenon: ×
Extra front lights: ×
Spoilers (f / r): ✓ / ×
Wiper: ✓

Navigation & sound

Navigation: ✓
Navigation device: HDD
Audio: AM/FMラジオ
CD player: 単装

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
—	2.730	1.526	1.000	0.696	—	—	—	—	2.290

Available colors

black / black micawhite / Other whitegreenMaroon (brown)OliveNavy bluePurpleAshesYellowYellow-greenBlack (P) / Other Black (P)Magenta / Other MagentaSilver / Other SilverRedBlue / Blue mica metallicDark cyanPearlGold
