JDM Vehicle Catalog

Vehicle Specs

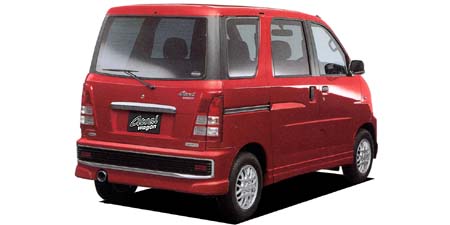

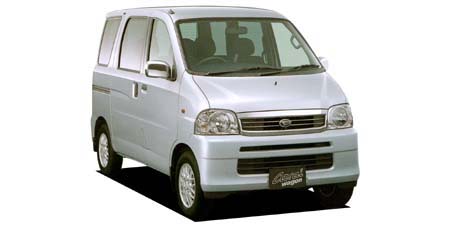

DAIHATSU ATRAI WAGON CX

DAIHATSU ATRAI WAGON

S230G · CX

Description

Modification: CX
Chassis ID: S230G
Dates releasing: 2002.1~
Base price, ¥: TA-S230G
Body size: 3395x1475x1865
Interior (LxWxH): 1850x1310x1315
Wheelbase: 2420
Track f/r: 1285mm/1290mm
Full weight, kg: 970
Body type: Key SUV
Doors / seats: 5 door / 4

Safe equipment

Driver's air bag: ✓
Front passenger air bag: ◯
Side airbags: ×
ABS: ◯
TRC: ×
Belts w/ tensioner: ×
Belts w/ effort limiter: ✓
Belts w/ holding: ✓
Child-seat fixation: ✓
Safety planks: ✓
Brake assist: ◯
Energy-absorbing body: 採用
EBD: ×
Anti-theft device: ◯
Additional equipment: 衝撃感知安全システム

Comfort

Air conditioner: Manual
Power window: ✓
Central switch: ✓
Steering column length: ×
Steering column height: ×
Cruise control: ×
Leather steering wheel: ◯
Leather seats: —
Power front seat: ×
Power rear seat: ×
Wood panel: ◯
Sunroof: ◯
Alloy wheels: Option settings YES
Folding seat: split
Glass w/ UV filter: ✓
Toned glasses: ✓

Engine

Model: EF-VE
Type: water cooling inline 3 cylinder DOHC 12-valves
Bore x stroke, mm: 68.0x60.5
Engine size, cc: 659
Compression ratio: 10.5
Fuel injection: EFI
Max power, hp/rpm: 50ps(37kW)/5900rpm
Max torque, Nm/rpm: 6.4kg m(63N m)/4000rpm
Supercharger: ×
Fuel tank, liters: 46 l
Fuel: Regular unleaded gasoline
Fuel consumption, l/100km: 6.6

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: McPherson Strut type
Rear suspension: トレーリングリンク Axle Coil spring
Front brake: disk
Rear brake: Drum
Front wheel: 165/70R13 79S
Rear wheel: 165/70R13 79S
Min turn diameter, m: 4.3

Gearbox

Number of stages: 5MT
Drive: Full-time 4WD
LSD: ----

Exterior equipment

Front fog lights: ◯
Rear fog lights: ×
Xenon: ×
Extra front lights: ×
Spoilers (f / r): × / ◯
Wiper: ✓

Navigation & sound

Navigation: ◯
Navigation device: DVD
Audio: AM/FM radio with CS player
CD player: ×

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
—	4.059	2.389	1.636	1.000	0.838	—	—	—	4.128

Available colors

black / black micawhitegreenMaroon (brown)OliveNavy bluePurpleAshesYellowYellow-greenBlack (P)MagentaSilver / Other SilverRedBlue / Blue micaDark cyanPearlGold / Beige Metallic
