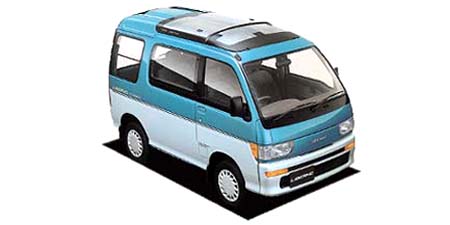

DAIHATSU ATRAI MX

DAIHATSU ATRAI

S120V · MX

Description

Modification: MX
Chassis ID: S120V
Dates releasing: 1994.1~
Base price, ¥: V-S120V
Body size: 3295x1395x1855
Interior (LxWxH): ----x----x----
Wheelbase: 1900
Track f/r: 1215mm/1220mm
Full weight, kg: 880
Body type: Key SUV
Doors / seats: 5 door / 2

Safe equipment

Driver's air bag: ×
Front passenger air bag: ×
Side airbags: ×
ABS: ×
TRC: ×
Belts w/ tensioner: ×
Belts w/ effort limiter: ×
Belts w/ holding: ✓
Child-seat fixation: ×
Safety planks: ×
Brake assist: ×
Energy-absorbing body: ×
EBD: ×
Anti-theft device: ×
Additional equipment: ×

Comfort

Air conditioner: Manual
Power window: ×
Central switch: ×
Steering column length: ×
Steering column height: ×
Cruise control: ×
Leather steering wheel: ×
Leather seats: —
Power front seat: ×
Power rear seat: ×
Wood panel: ◯
Sunroof: ×
Alloy wheels: Option settings YES
Folding seat: split
Glass w/ UV filter: ×
Toned glasses: ×

Engine

Model: EF
Type: water cooling inline 3 cylinder OHC 12-valves
Bore x stroke, mm: 68.0x60.5
Engine size, cc: 659
Compression ratio: 9.8
Fuel injection: EFI
Max power, hp/rpm: 44ps(32kW)/6100rpm
Max torque, Nm/rpm: 5.9kg m(57.9N m)/3600rpm
Supercharger: ×
Fuel tank, liters: 40 l
Fuel: Regular unleaded gasoline
Fuel consumption, l/100km: 0

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: McPherson Strut type Coil spring
Rear suspension: 3-link Coil spring
Front brake: disk
Rear brake: Drum
Front wheel: 145R12
Rear wheel: 145R12
Min turn diameter, m: 3.8

Gearbox

Number of stages: 3AT
Drive: FR
LSD: ----

Exterior equipment

Front fog lights: ×
Rear fog lights: ×
Xenon: ×
Extra front lights: ×
Spoilers (f / r): × / ×
Wiper: ✓

Navigation & sound

Navigation: ×
Navigation device: It is not
Audio: AM/FM radio with CS player
CD player: ×

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
—	2.278	1.536	1.000	—	—	—	—	—	2.222

Available colors

blackwhitegreenMaroon (brown)OliveNavy blue / Blue micaPurpleAshesYellowYellow-green / Other Yellow-greenBlack (P)MagentaSilverRedBlueDark cyan / Other Dark cyanPearlGold
