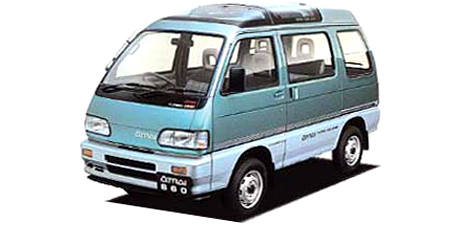

DAIHATSU ATRAI TURBO FX

DAIHATSU ATRAI

S82V · TURBO FX

Description

Modification: TURBO FX
Chassis ID: S82V
Dates releasing: 1991.8~
Base price, ¥: V-S82V
Body size: 3295x1395x1870
Interior (LxWxH): ----x----x----
Wheelbase: 1810
Track f/r: 1205mm/1220mm
Full weight, kg: 850
Body type: Key SUV
Doors / seats: 5 door / 4

Safe equipment

Driver's air bag: ×
Front passenger air bag: ×
Side airbags: ×
ABS: ×
TRC: ×
Belts w/ tensioner: ×
Belts w/ effort limiter: ×
Belts w/ holding: ×
Child-seat fixation: ×
Safety planks: ×
Brake assist: ×
Energy-absorbing body: ×
EBD: ×
Anti-theft device: ×
Additional equipment: ×

Comfort

Air conditioner: ×
Power window: ◯
Central switch: ×
Steering column length: ×
Steering column height: ×
Cruise control: ×
Leather steering wheel: ×
Leather seats: —
Power front seat: ×
Power rear seat: ×
Wood panel: ×
Sunroof: 特殊形状
Alloy wheels: Option settings YES
Folding seat: split
Glass w/ UV filter: ×
Toned glasses: ×

Engine

Model: EF
Type: water cooling inline 3 cylinder OHCIC-turbo
Bore x stroke, mm: 68.0x60.5
Engine size, cc: 659
Compression ratio: 8.3
Fuel injection: EFI
Max power, hp/rpm: 64ps(47kW)/6000rpm
Max torque, Nm/rpm: 8.8kg m(86.3N m)/4000rpm
Supercharger: IC turbo
Fuel tank, liters: 35 l
Fuel: Regular unleaded gasoline
Fuel consumption, l/100km: 0

Steering & suspension

Steering: Power assist equipped rack&pinion
Front suspension: McPherson Strut type Coil spring
Rear suspension: リジットアクスルリーフスプリン&#12464
Front brake: disk
Rear brake: Drum
Front wheel: 155R12-6PRLT
Rear wheel: 155R12-6PRLT
Min turn diameter, m: 3.6

Gearbox

Number of stages: 5MT
Drive: FR
LSD: ----

Exterior equipment

Front fog lights: ✓
Rear fog lights: ×
Xenon: ×
Extra front lights: ×
Spoilers (f / r): ◯ / ◯
Wiper: ✓

Navigation & sound

Navigation: ×
Navigation device: It is not
Audio: AMラジオ
CD player: ×

Gear ratios

CVT	1	2	3	4	5	6	7	Rev	Main
—	3.427	2.302	1.561	1.000	0.817	—	—	—	4.218

Available colors

blackwhitegreenMaroon (brown)OliveNavy bluePurpleAshes / Other AshesYellowYellow-green / Other Yellow-greenBlack (P)MagentaSilverRedBlueDark cyanPearlGold
